IMC0805ER82NJ01

Image is for reference,
please contact us to get the real picture

Part No :: IMC0805ER82NJ01

Manufacturer: Vishay / Dale

Description: FIXED IND 82NH 500MA 320 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: IMC0805ER82NJ01 PDF

Availability: 0 pieces

Unit Price: ~~$0.12240~~

Current price of IMC0805ER82NJ01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0805ER82NJ01 Specifications

Type	Description
Series:	IMC-0805-01
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	82 nH
Tolerance:	±5%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	320mOhm Max
Q @ Freq:	60 @ 500MHz
Frequency - Self Resonant:	1.35GHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	150 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.055" (1.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

HCM1A0805-3R3-R

FIXED IND 3.3UH 8A 10MOHM SMD

HOT

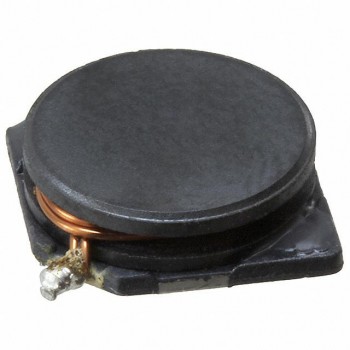

SDR1030-221K

FIXED IND 220UH 460MA 1.15OHM SM

HOT

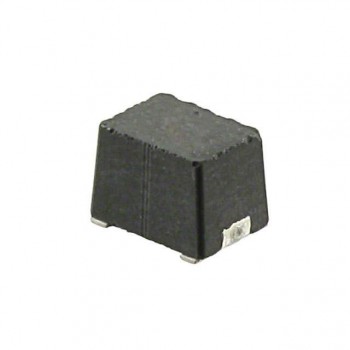

ISC1812ESR33K
