PM127SH-820M-RC

PM127SH-820M-RC

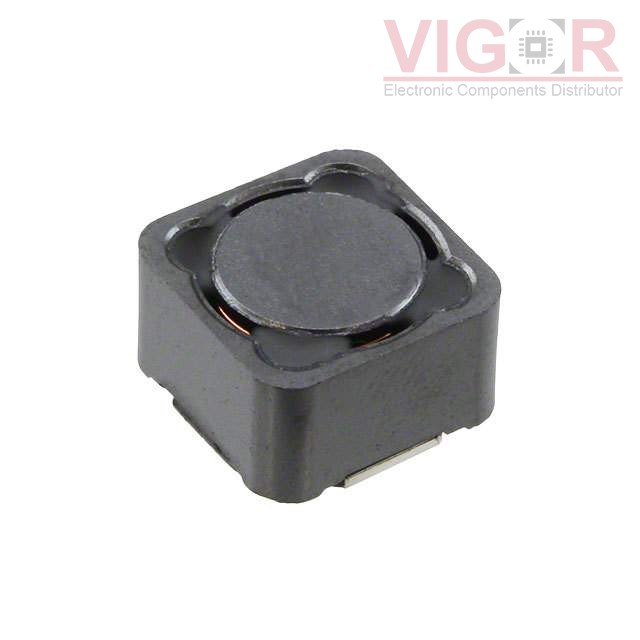

Image is for reference,
please contact us to get the real picture

Part No :

PM127SH-820M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 82UH 2.3A 130 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
PM127SH-820M-RC PDF
Availability
0 pieces
Unit Price
$0.73500

Current price of PM127SH-820M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM127SH-820M-RC Specifications
Type Description
Series:PM127SH
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:82 µH
Tolerance:±20%
Current Rating (Amps):2.3 A
Current - Saturation (Isat):2.2A
Shielding:Shielded
DC Resistance (DCR):130mOhm Max
Q @ Freq:20 @ 796kHz
Frequency - Self Resonant:5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):0.315" (8.00mm)
