CW252016-R56G

CW252016-R56G

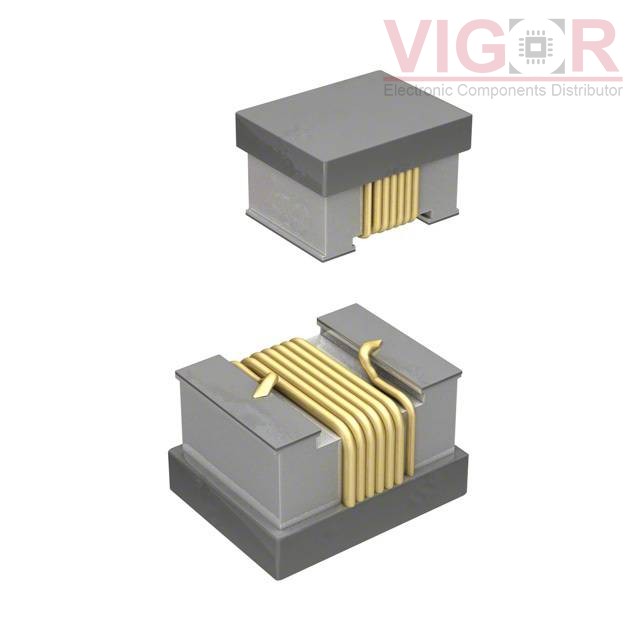

Image is for reference,
please contact us to get the real picture

Part No :

CW252016-R56G

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560NH 400MA 1.33OHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
CW252016-R56G PDF
Availability
0 pieces
Unit Price
$0.18848

Current price of CW252016-R56G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW252016-R56G Specifications
Type Description
Series:CW252016
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:560 nH
Tolerance:±2%
Current Rating (Amps):400 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.33Ohm Max
Q @ Freq:45 @ 100MHz
Frequency - Self Resonant:415MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.071" (1.80mm)
