NRS5020T220MMGJ

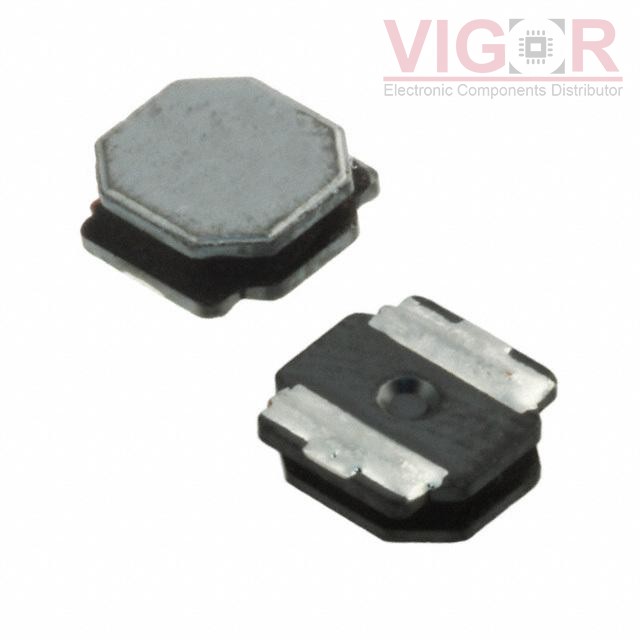

Image is for reference,
please contact us to get the real picture

Part No :: NRS5020T220MMGJ

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 1A 312 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: NRS5020T220MMGJ PDF

Availability: 23035 pieces

Unit Price: ~~$0.30000~~

Current price of NRS5020T220MMGJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NRS5020T220MMGJ Specifications

Type	Description
Series:	NR, S Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	900mA
Shielding:	Shielded
DC Resistance (DCR):	312mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	17MHz
Ratings:	-
Operating Temperature:	-25°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max):	0.079" (2.00mm)
