IHSM3825ER560L

IHSM3825ER560L

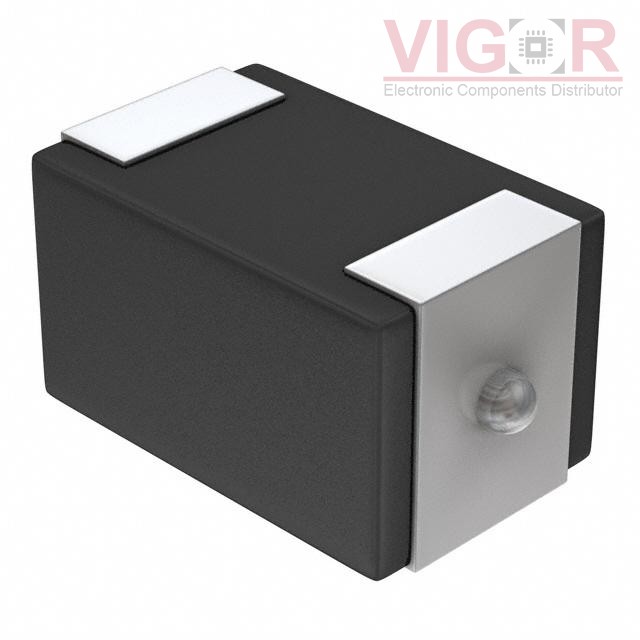

Image is for reference,
please contact us to get the real picture

Part No :

IHSM3825ER560L

Manufacturer
Vishay / Dale
Description
FIXED IND 56UH 650MA 845 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
IHSM3825ER560L PDF
Availability
0 pieces
Unit Price
$1.86000

Current price of IHSM3825ER560L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHSM3825ER560L Specifications
Type Description
Series:IHSM-3825
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±15%
Current Rating (Amps):650 mA
Current - Saturation (Isat):640mA
Shielding:Unshielded
DC Resistance (DCR):845mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.440" L x 0.250" W (11.18mm x 6.35mm)
Height - Seated (Max):0.225" (5.72mm)
