LK1005R12K-TV

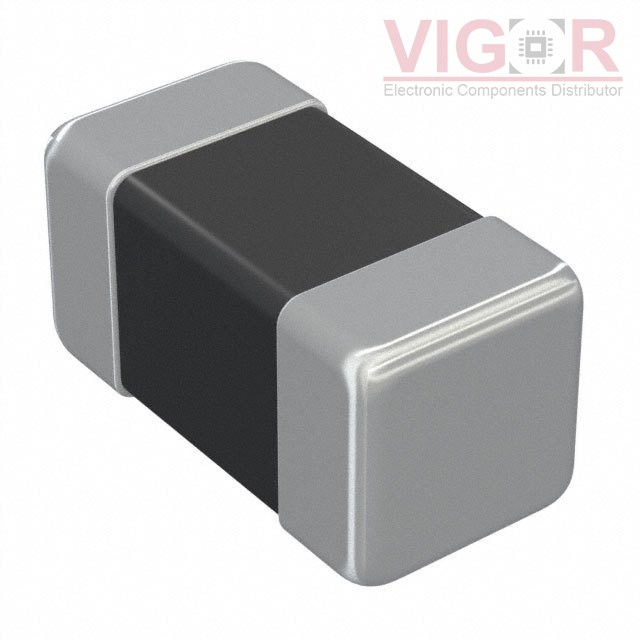

Image is for reference,
please contact us to get the real picture

Part No :: LK1005R12K-TV

Manufacturer: TAIYO YUDEN

Description: FIXED IND 120NH 25MA 590 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 18 - Aug 22 2025

DataSheet: LK1005R12K-TV PDF

Availability: 0 pieces

Unit Price: ~~$0.03968~~

Current price of LK1005R12K-TV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LK1005R12K-TV Specifications

Type	Description
Series:	LK
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	-
Inductance:	120 nH
Tolerance:	±10%
Current Rating (Amps):	25 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	590mOhm
Q @ Freq:	10 @ 25MHz
Frequency - Self Resonant:	180MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.022" (0.55mm)
