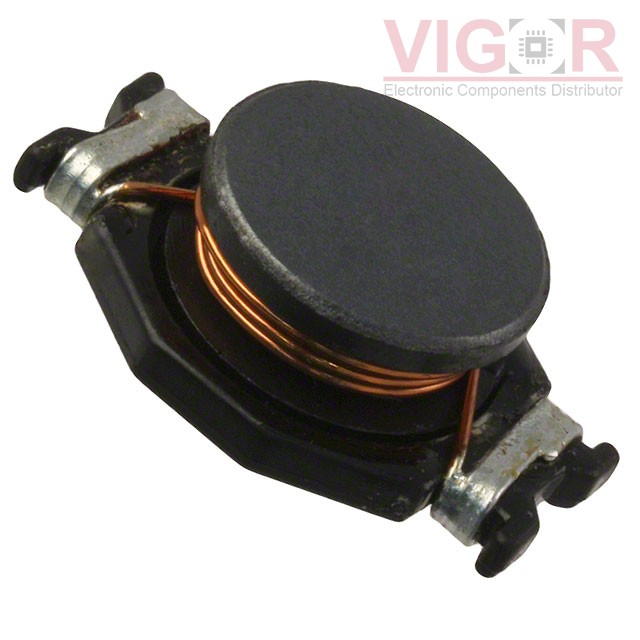

SDR2207-R80M

Image is for reference,
please contact us to get the real picture

Part No :: SDR2207-R80M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 800NH 16A 2.8 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: SDR2207-R80M PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SDR2207-R80M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR2207-R80M Specifications

Type	Description
Series:	SDR2207
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	800 nH
Tolerance:	±20%
Current Rating (Amps):	16 A
Current - Saturation (Isat):	35A
Shielding:	Unshielded
DC Resistance (DCR):	2.8mOhm Max
Q @ Freq:	30 @ 5MHz
Frequency - Self Resonant:	102MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max):	0.307" (7.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

CIG21L1R2MNE

FIXED IND 1.2UH 1.1A 125 MOHM

HOT

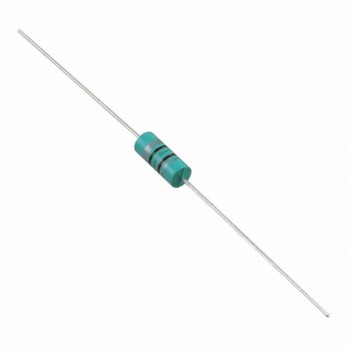

IMS05EB102K

FIXED IND 1MH 70MA 17.5 OHM TH

HOT

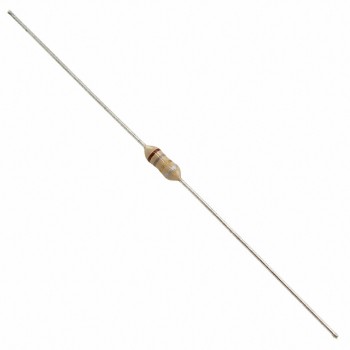

8230-26
