CMH322522-56NML

CMH322522-56NML

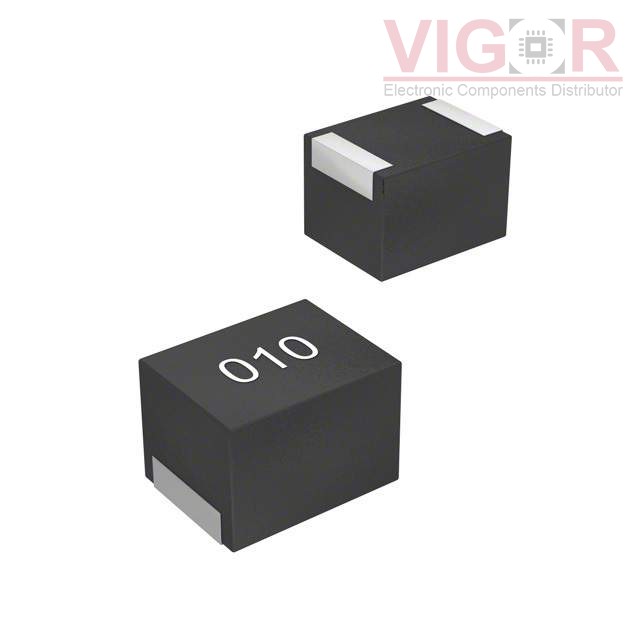

Image is for reference,
please contact us to get the real picture

Part No :

CMH322522-56NML

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56NH 450MA 330MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
CMH322522-56NML PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CMH322522-56NML is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMH322522-56NML Specifications
Type Description
Series:CMH322522
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:56 nH
Tolerance:±20%
Current Rating (Amps):450 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):330mOhm Max
Q @ Freq:26 @ 100MHz
Frequency - Self Resonant:1.1GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SCMD4D12C-3R3

SCMD4D12C-3R3

FIXED IND 3.3UH 1.38A 200 MOHM
HOT ELJ-FBR22MF

ELJ-FBR22MF

FIXED IND 220NH 700MA 300 MOHM

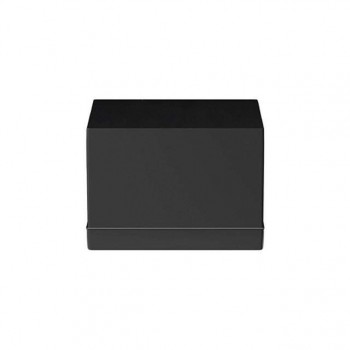

HOT B82432A1123J000
