ELL-ATP4R7NB

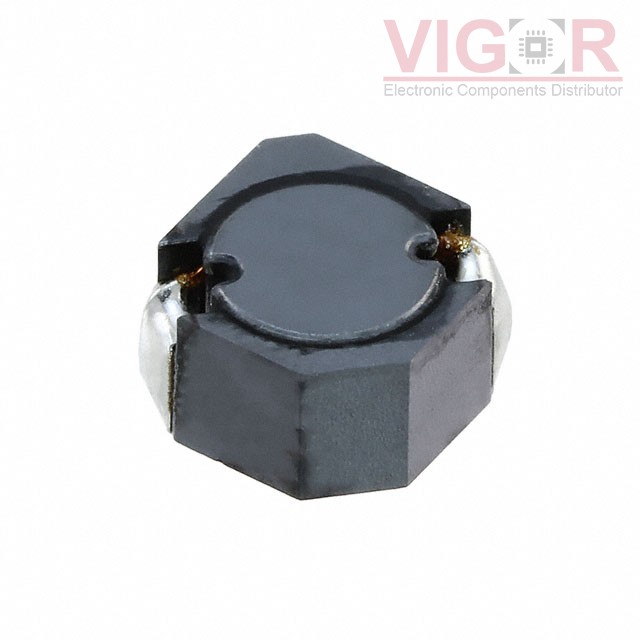

Image is for reference,
please contact us to get the real picture

Part No :: ELL-ATP4R7NB

Manufacturer: Panasonic

Description: FIXED IND 4.7UH 5A 9.1MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 16 - Aug 20 2025

DataSheet: ELL-ATP4R7NB PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of ELL-ATP4R7NB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-ATP4R7NB Specifications

Type	Description
Series:	P
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	4.7 µH
Tolerance:	±30%
Current Rating (Amps):	5 A
Current - Saturation (Isat):	4.5A
Shielding:	Shielded
DC Resistance (DCR):	9.1mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, Corner Terminals
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):	0.177" (4.50mm)
