2200HT-5R6-V

2200HT-5R6-V

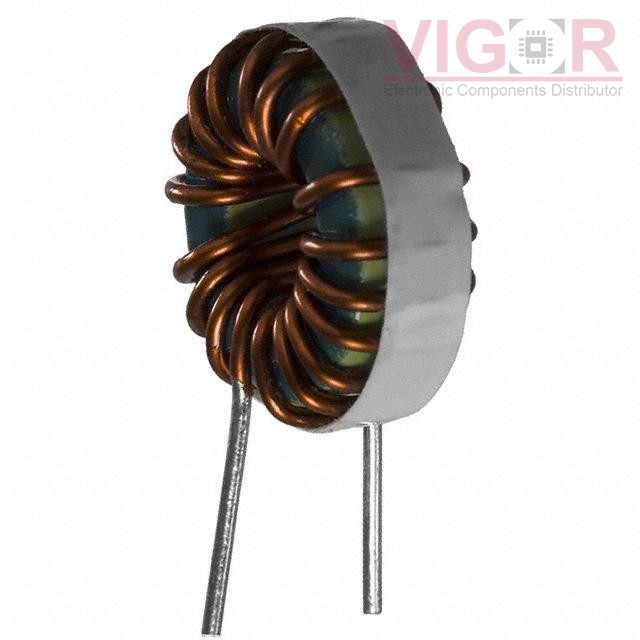

Image is for reference,
please contact us to get the real picture

Part No :

2200HT-5R6-V

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 5.6UH 16.1A 7 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
2200HT-5R6-V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 2200HT-5R6-V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2200HT-5R6-V Specifications
Type Description
Series:2200HT
Package:Bulk
Part Status:Obsolete
Type:Toroidal
Material - Core:Iron Powder
Inductance:5.6 µH
Tolerance:±15%
Current Rating (Amps):16.1 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):7mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 200°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical (Open)
Supplier Device Package:-
Size / Dimension:0.950" Dia x 0.550" W (24.13mm x 13.97mm)
Height - Seated (Max):-
