8230-52

8230-52

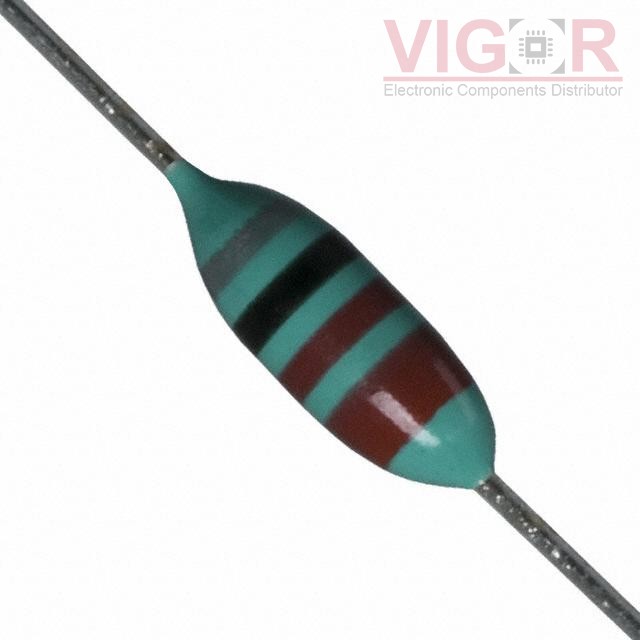

Image is for reference,
please contact us to get the real picture

Part No :

8230-52

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 190MA 3.3 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
8230-52 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 8230-52 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8230-52 Specifications
Type Description
Series:8230
Package:Bulk
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):190 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3.3Ohm Max
Q @ Freq:50 @ 2.5MHz
Frequency - Self Resonant:25MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:2.5 MHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.120" Dia x 0.300" L (3.05mm x 7.62mm)
Height - Seated (Max):-
