70F101AF

70F101AF

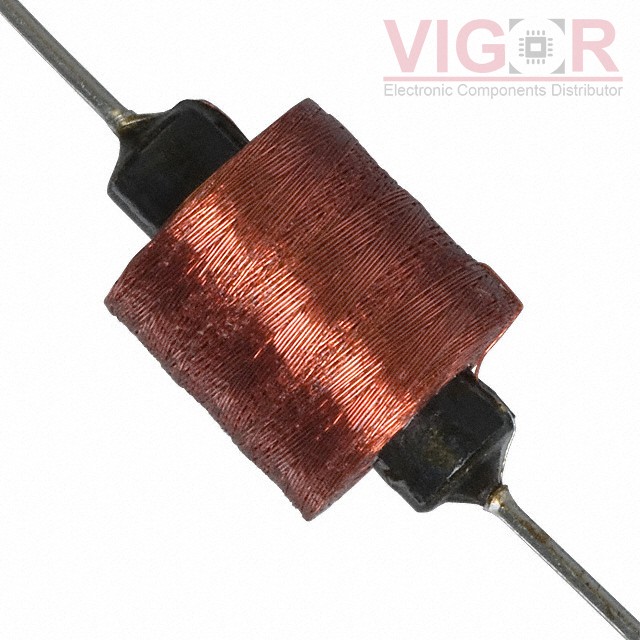

Image is for reference,
please contact us to get the real picture

Part No :

70F101AF

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 100MH 29MA 278 OHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 23 - Aug 27 2025
DataSheet
70F101AF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 70F101AF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

70F101AF Specifications
Type Description
Series:70F
Package:Bulk
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:100 mH
Tolerance:±5%
Current Rating (Amps):29 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):278Ohm Max
Q @ Freq:48 @ 79kHz
Frequency - Self Resonant:157kHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:79 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.440" Dia x 0.630" L (11.18mm x 16.00mm)
Height - Seated (Max):-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

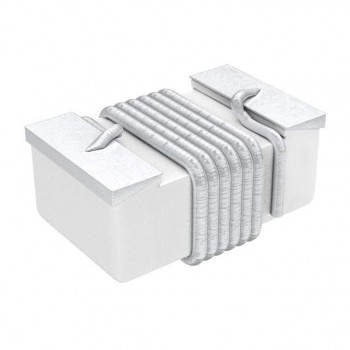

HOT 5508 020 34 00

5508 020 34 00

FIXED IND 2.7NH 1A 30 MOHM SMD

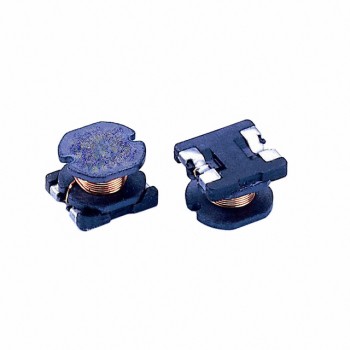

HOT SC75B-820

SC75B-820

FIXED IND 82UH 1.03A 370 MOHM

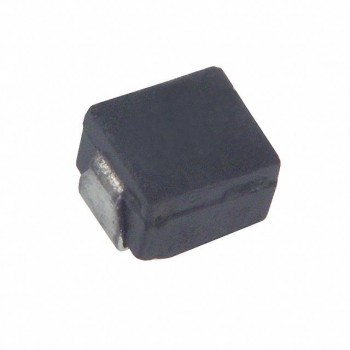

HOT ELJ-FC2R2MF
