CM252016-560KL

CM252016-560KL

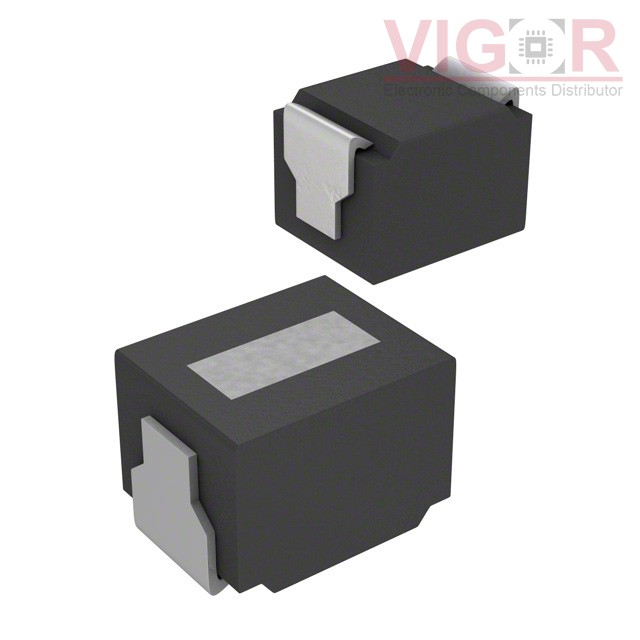

Image is for reference,
please contact us to get the real picture

Part No :

CM252016-560KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56UH 75MA 12.1 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
CM252016-560KL PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CM252016-560KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM252016-560KL Specifications
Type Description
Series:CM252016
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):75 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):12.1Ohm Max
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:16MHz
Ratings:-
Operating Temperature:-20°C ~ 100°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.063" (1.60mm)
