IMC0603ER56NJ

IMC0603ER56NJ

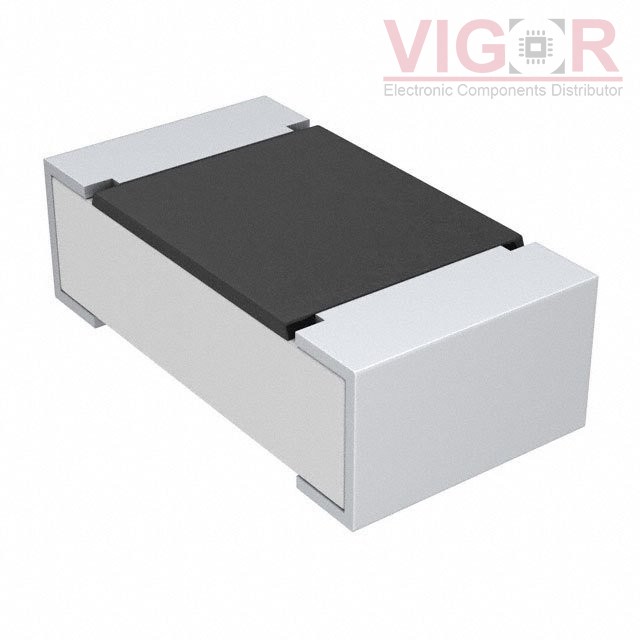

Image is for reference,
please contact us to get the real picture

Part No :

IMC0603ER56NJ

Manufacturer
Vishay / Dale
Description
FIXED IND 56NH 250MA 1.2 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
IMC0603ER56NJ PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IMC0603ER56NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0603ER56NJ Specifications
Type Description
Series:IMC-0603
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:-
Material - Core:Ceramic
Inductance:56 nH
Tolerance:±5%
Current Rating (Amps):250 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.2Ohm Max
Q @ Freq:30 @ 500MHz
Frequency - Self Resonant:1.8GHz
Ratings:-
Operating Temperature:-40°C ~ 100°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max):0.049" (1.25mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

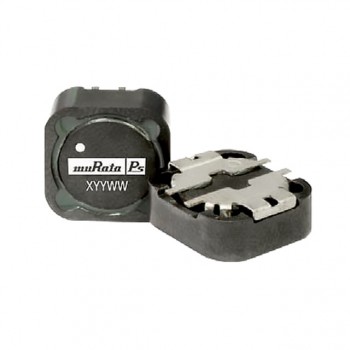

HOT 47102SC

47102SC

FIXED IND 1MH 400MA 2.54 OHM SMD

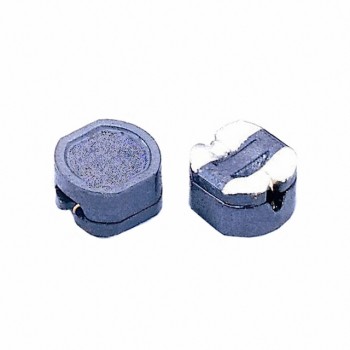

HOT SCR63B-220

SCR63B-220

FIXED IND 22UH 1.1A 320 MOHM SMD

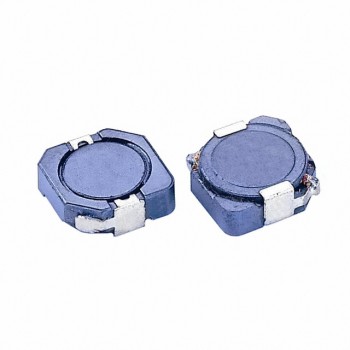

HOT SCRH1035R-101
