CM252016-4R7KL

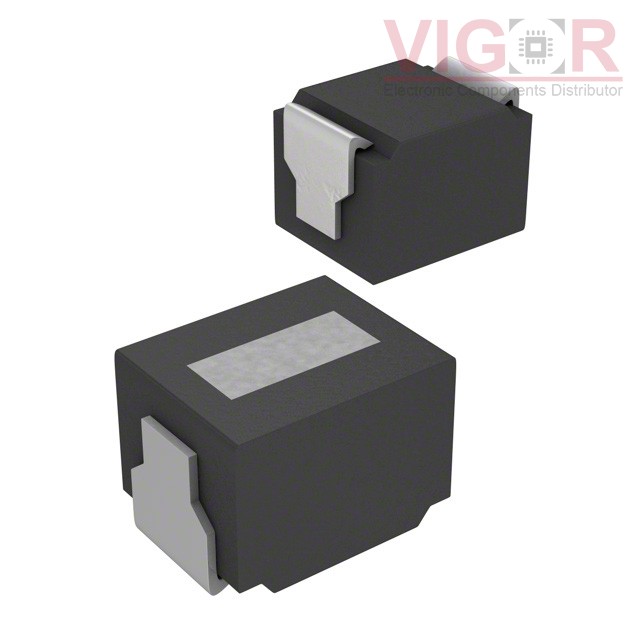

Image is for reference,
please contact us to get the real picture

Part No :: CM252016-4R7KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 4.7UH 125MA 1.6OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: CM252016-4R7KL PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CM252016-4R7KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM252016-4R7KL Specifications

Type	Description
Series:	CM252016
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	4.7 µH
Tolerance:	±10%
Current Rating (Amps):	125 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.6Ohm Max
Q @ Freq:	25 @ 7.96MHz
Frequency - Self Resonant:	55MHz
Ratings:	-
Operating Temperature:	-20°C ~ 100°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.063" (1.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ELC-18B100L

FIXED IND 10UH 6.5A 17 MOHM TH

HOT

L06035R6BHLTR

FIXED IND 5.6NH 300MA 250 MOHM

HOT

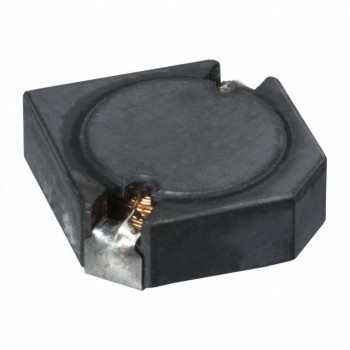

ELL-CTV221M
