CW100505-18NJ3

CW100505-18NJ3

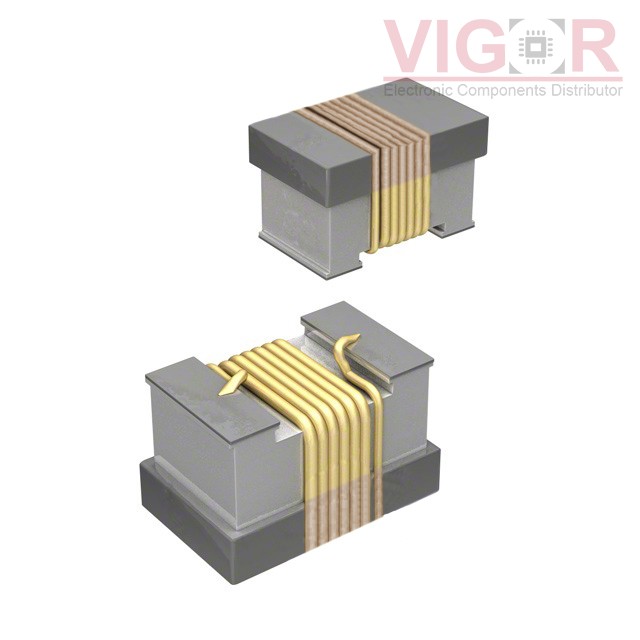

Image is for reference,
please contact us to get the real picture

Part No :

CW100505-18NJ3

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 18NH 420MA 230MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 20 - Aug 24 2025
DataSheet
CW100505-18NJ3 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CW100505-18NJ3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW100505-18NJ3 Specifications
Type Description
Series:CW100505
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:18 nH
Tolerance:±5%
Current Rating (Amps):420 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):230mOhm
Q @ Freq:25 @ 250MHz
Frequency - Self Resonant:3.1GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):0.024" (0.60mm)
