TSL0808RA-222KR17-PF

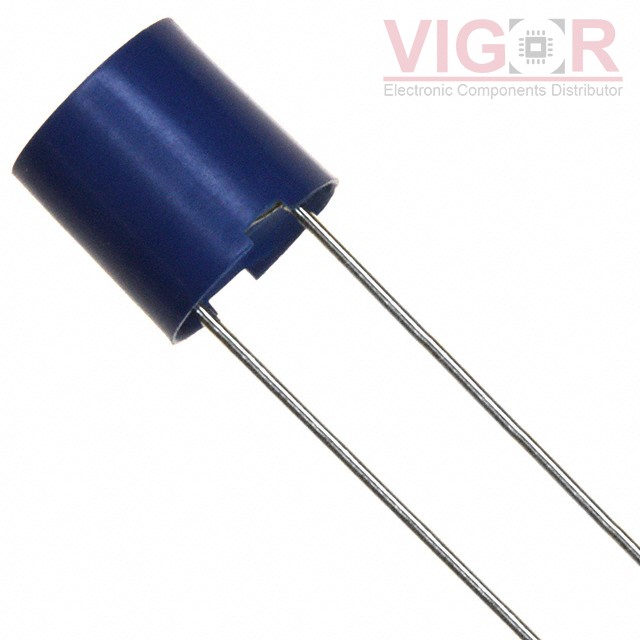

Image is for reference,
please contact us to get the real picture

Part No :: TSL0808RA-222KR17-PF

Manufacturer: TDK Corporation

Description: FIXED IND 2.2MH 170MA 6.4 OHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: TSL0808RA-222KR17-PF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TSL0808RA-222KR17-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSL0808RA-222KR17-PF Specifications

Type	Description
Series:	TSL
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	2.2 mH
Tolerance:	±10%
Current Rating (Amps):	170 mA
Current - Saturation (Isat):	170mA
Shielding:	Unshielded
DC Resistance (DCR):	6.4Ohm Max
Q @ Freq:	50 @ 252kHz
Frequency - Self Resonant:	880kHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.335" Dia (8.50mm)
Height - Seated (Max):	0.346" (8.80mm)
