IMC0805ERR12K

IMC0805ERR12K

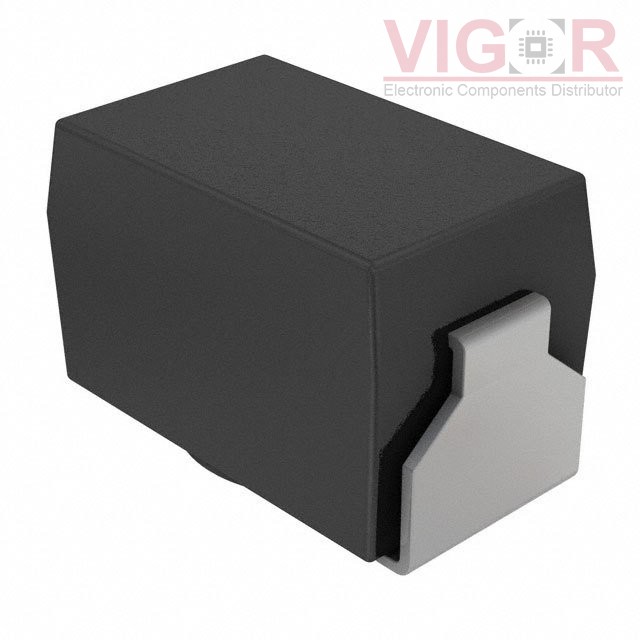

Image is for reference,
please contact us to get the real picture

Part No :

IMC0805ERR12K

Manufacturer
Vishay / Dale
Description
FIXED IND 120NH 275MA 760 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
IMC0805ERR12K PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IMC0805ERR12K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0805ERR12K Specifications
Type Description
Series:IMC-0805
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:120 nH
Tolerance:±10%
Current Rating (Amps):275 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):760mOhm Max
Q @ Freq:8 @ 25.2MHz
Frequency - Self Resonant:600MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.061" (1.55mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82432A1333J000

B82432A1333J000

FIXED IND 33UH 230MA 1.85 OHM
HOT ELJ-PE10NKFA

ELJ-PE10NKFA

FIXED IND 10NH 1.4A 65 MOHM SMD

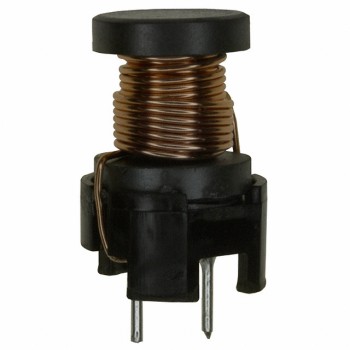

HOT ELC-16B821L
