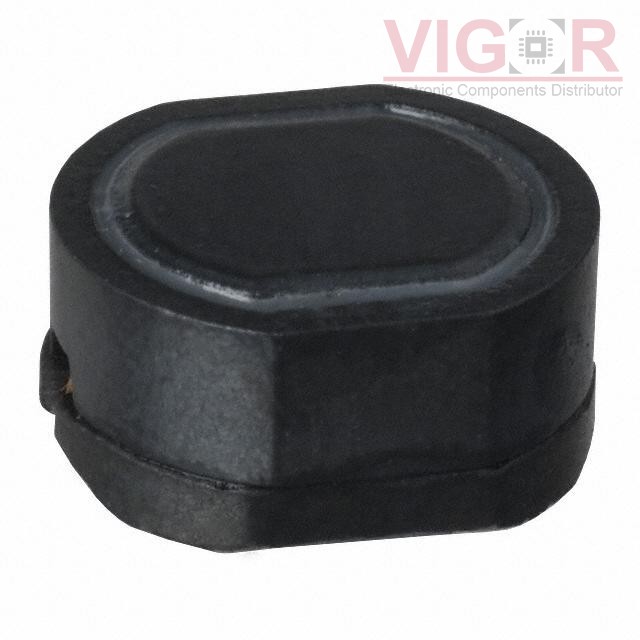

PM105S-820M

Image is for reference,
please contact us to get the real picture

Part No :: PM105S-820M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 82UH 880MA 280MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: PM105S-820M PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PM105S-820M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM105S-820M Specifications

Type	Description
Series:	PM105S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	82 µH
Tolerance:	±20%
Current Rating (Amps):	880 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	280mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	10MHz
Ratings:	-
Operating Temperature:	-30°C ~ 100°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.362" W (10.00mm x 9.20mm)
Height - Seated (Max):	0.217" (5.50mm)
