SD3814-R47-R

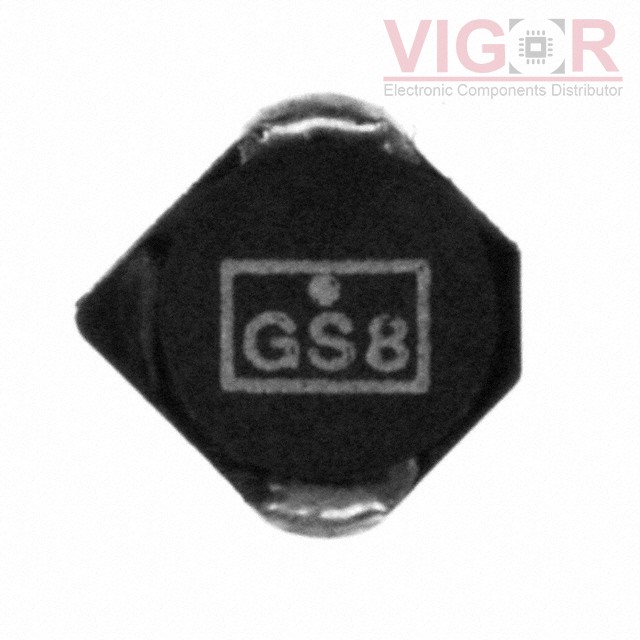

Image is for reference,
please contact us to get the real picture

Part No :: SD3814-R47-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 470NH 2.81A 20 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 14 - Aug 18 2025

DataSheet: SD3814-R47-R PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SD3814-R47-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SD3814-R47-R Specifications

Type	Description
Series:	SD38
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	470 nH
Tolerance:	±15%
Current Rating (Amps):	2.81 A
Current - Saturation (Isat):	4.44A
Shielding:	Shielded
DC Resistance (DCR):	20mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):	0.055" (1.40mm)
