CIG22HR47MAE

CIG22HR47MAE

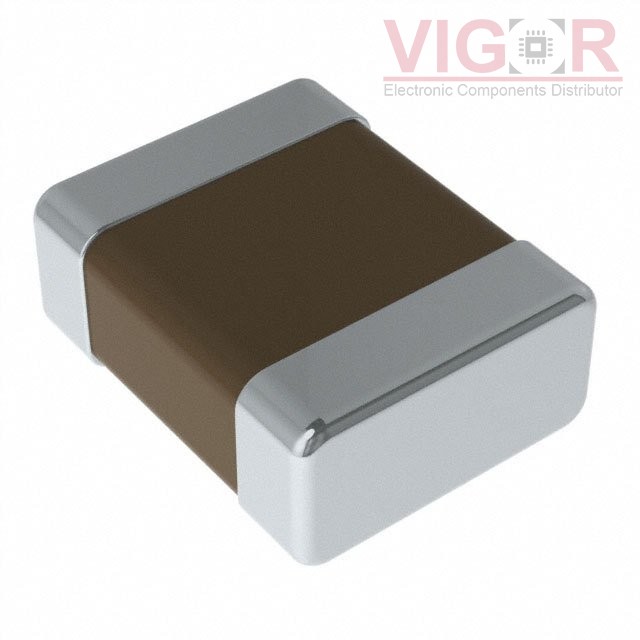

Image is for reference,
please contact us to get the real picture

Part No :

CIG22HR47MAE

Manufacturer
Samsung Electro-Mechanics
Description
FIXED IND 470NH 2.1A 44 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
CIG22HR47MAE PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CIG22HR47MAE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CIG22HR47MAE Specifications
Type Description
Series:CIG22H_MAE
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Multilayer
Material - Core:-
Inductance:470 nH
Tolerance:±20%
Current Rating (Amps):2.1 A
Current - Saturation (Isat):3.8A
Shielding:Shielded
DC Resistance (DCR):44mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 79F680K

79F680K

FIXED IND 68UH 64MA 7.2 OHM TH
HOT SC53-121

SC53-121

FIXED IND 120UH 520MA 1.01 OHM

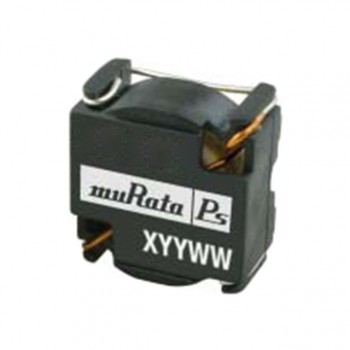

HOT 40101C
