PM5022S-151M

PM5022S-151M

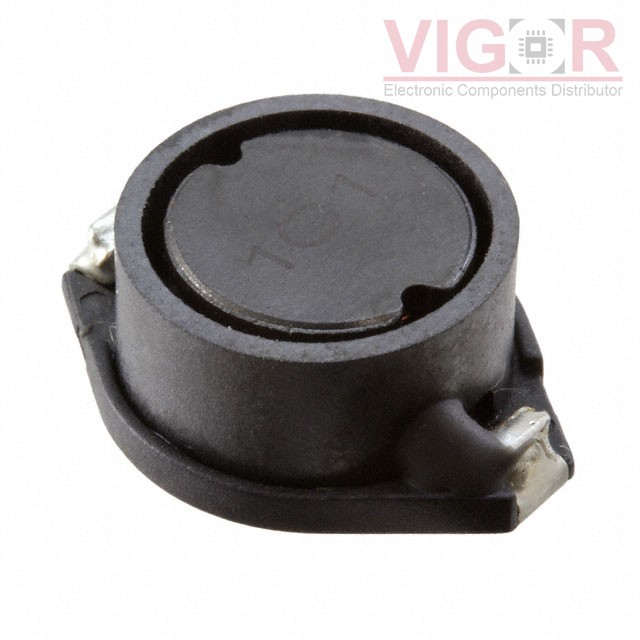

Image is for reference,
please contact us to get the real picture

Part No :

PM5022S-151M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 150UH 1.3A 293MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
PM5022S-151M PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PM5022S-151M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM5022S-151M Specifications
Type Description
Series:PM5022S
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:150 µH
Tolerance:±20%
Current Rating (Amps):1.3 A
Current - Saturation (Isat):2.1A
Shielding:Shielded
DC Resistance (DCR):293mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.732" L x 0.602" W (18.60mm x 15.30mm)
Height - Seated (Max):0.299" (7.60mm)
