760308101

760308101

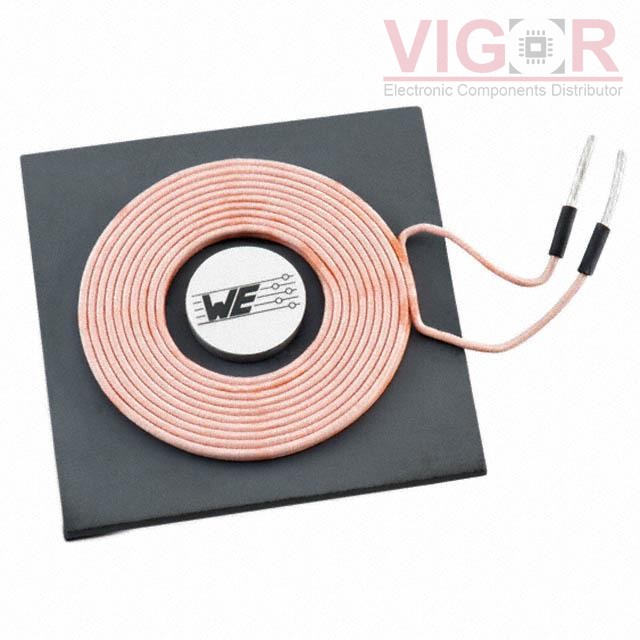

Image is for reference,
please contact us to get the real picture

Part No :

760308101

Manufacturer
Würth Elektronik Midcom
Description
TX 1 COIL 2 LAYER 24UH 6A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
760308101 PDF
Availability
77 pieces
Unit Price
$17.60000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 760308101 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

760308101 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Transmitter
Type:1 Coil, 2 Layer
Inductance:24µH
Tolerance:±10%
DC Resistance (DCR):100mOhm Max
Q @ Freq:90 @ 125kHz
Current Rating (Amps):6A
Current - Saturation (Isat):10A
Frequency - Self Resonant:6MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
