760308103305

760308103305

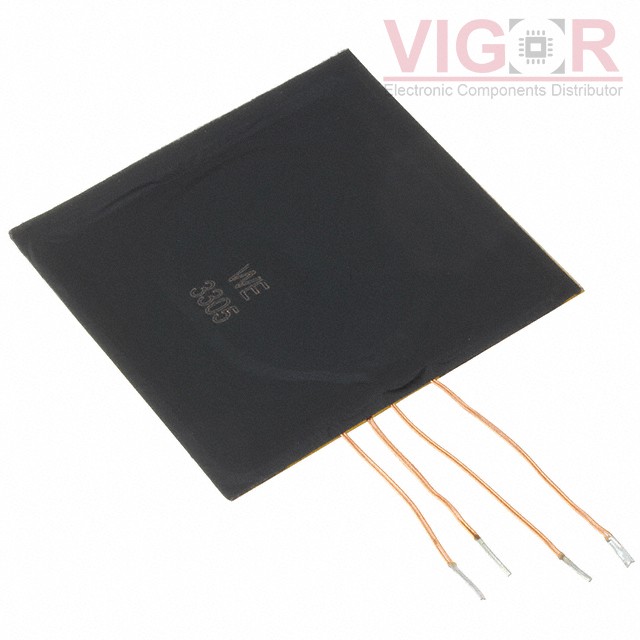

Image is for reference,
please contact us to get the real picture

Part No :

760308103305

Manufacturer
Würth Elektronik Midcom
Description
WE-WPCC WIRELESS POWER CHARGING
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
760308103305 PDF
Availability
6 pieces
Unit Price
$14.24000

Current price of 760308103305 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308103305 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Receiver
Type:2 Coil, 1 Layer
Inductance:8.8µH, 1.4µH
Tolerance:±10%
DC Resistance (DCR):220mOhm Max, 100mOhm Max
Q @ Freq:30 @ 125Khz, 47 @ 125kHz
Current Rating (Amps):2.6A, 5A
Current - Saturation (Isat):5A, 5A
Frequency - Self Resonant:22MHz, 16MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:1.77" L x 1.73" W x 0.03" H (45.0mm x 44.0mm x 0.75mm)
