760308103202

760308103202

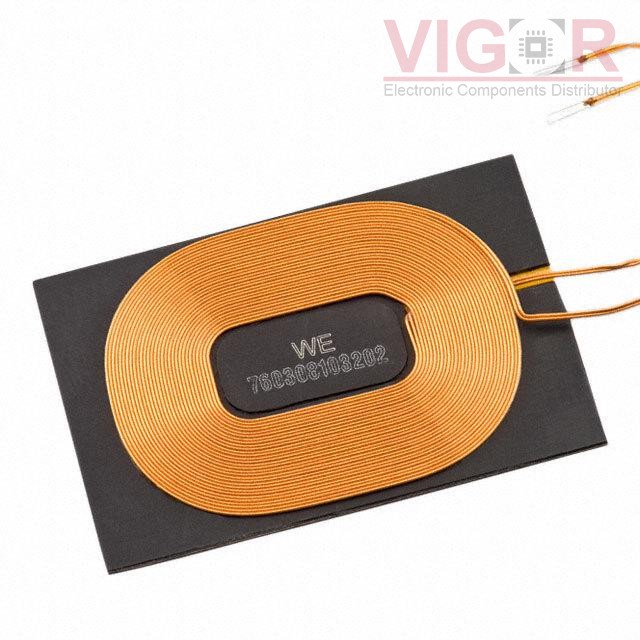

Image is for reference,
please contact us to get the real picture

Part No :

760308103202

Manufacturer
Würth Elektronik Midcom
Description
RX 1 COIL 1 LYR BIFILAR 12UH
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
760308103202 PDF
Availability
1710 pieces
Unit Price
$6.05000

Current price of 760308103202 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308103202 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Receiver
Type:1 Coil, 1 Layer, Bifilar
Inductance:12µH
Tolerance:±10%
DC Resistance (DCR):160mOhm
Q @ Freq:33 @ 125kHz
Current Rating (Amps):2.9A
Current - Saturation (Isat):6A
Frequency - Self Resonant:25MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm)
