WT505090-20K2-A10-G

WT505090-20K2-A10-G

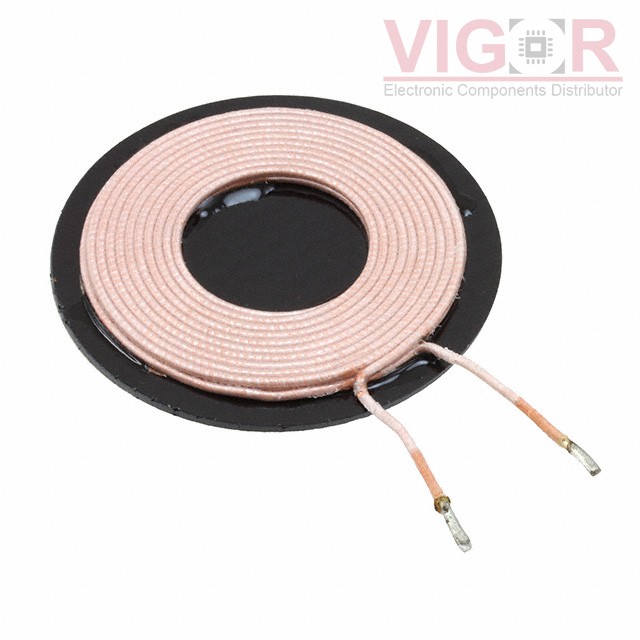

Image is for reference,
please contact us to get the real picture

Part No :

WT505090-20K2-A10-G

Manufacturer
TDK Corporation
Description
TX 1 COIL 2 LYR 24UH
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
WT505090-20K2-A10-G PDF
Availability
0 pieces
Unit Price
$8.28000

Current price of WT505090-20K2-A10-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WT505090-20K2-A10-G Specifications
Type Description
Series:WT
Package:Tray
Part Status:Active
Function:Transmitter
Type:1 Coil, 2 Layer
Inductance:24µH
Tolerance:-
DC Resistance (DCR):100mOhm
Q @ Freq:-
Current Rating (Amps):-
Current - Saturation (Isat):-
Frequency - Self Resonant:-
Operating Temperature:-
Size / Dimension:1.97" Dia x 0.15" H (50.0mm x 3.8mm)
