760308100110

760308100110

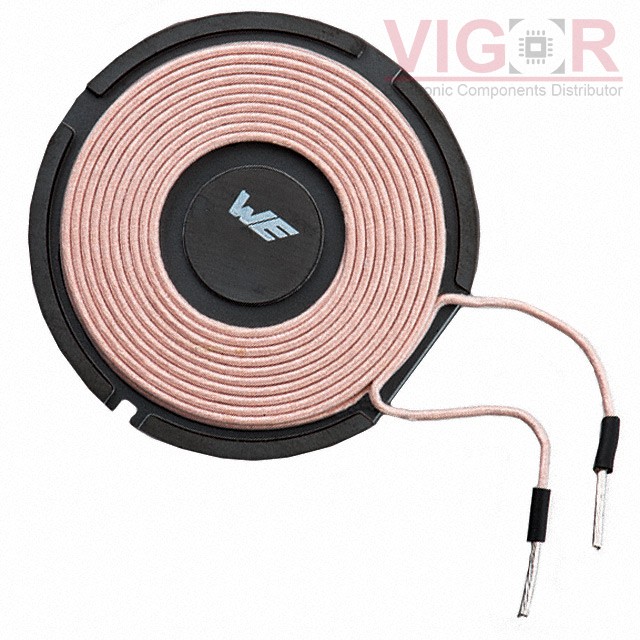

Image is for reference,
please contact us to get the real picture

Part No :

760308100110

Manufacturer
Würth Elektronik Midcom
Description
TX 1 COIL 2 LAYER 24UH 6A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
760308100110 PDF
Availability
115 pieces
Unit Price
$12.76000

Current price of 760308100110 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308100110 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Transmitter
Type:1 Coil, 2 Layer
Inductance:24µH
Tolerance:±10%
DC Resistance (DCR):70mOhm
Q @ Freq:180 @ 125kHz
Current Rating (Amps):6A
Current - Saturation (Isat):10A
Frequency - Self Resonant:5MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:1.97" Dia x 0.24" H (50.0mm x 6.0mm)
