760308100111

760308100111

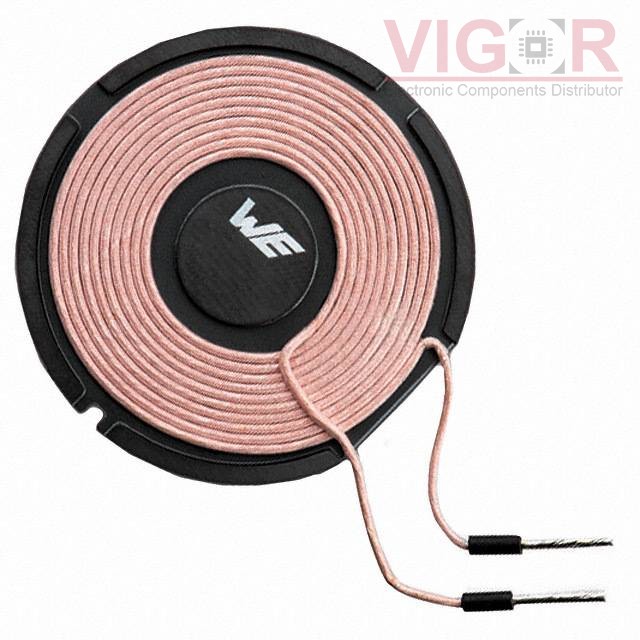

Image is for reference,
please contact us to get the real picture

Part No :

760308100111

Manufacturer
Würth Elektronik Midcom
Description
TX 1 COIL 1 LAYER 6.3UH 13A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
760308100111 PDF
Availability
126 pieces
Unit Price
$12.76000

Current price of 760308100111 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308100111 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Transmitter
Type:1 Coil, 1 Layer
Inductance:6.3µH
Tolerance:±10%
DC Resistance (DCR):48mOhm Max
Q @ Freq:120 @ 125kHz
Current Rating (Amps):6A
Current - Saturation (Isat):10A
Frequency - Self Resonant:24MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:1.97" Dia x 0.19" H (50.0mm x 4.7mm)
