760308103148

760308103148

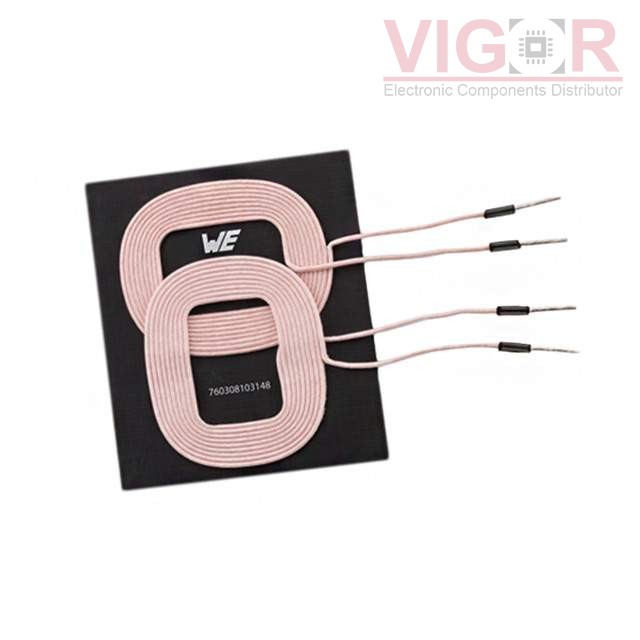

Image is for reference,
please contact us to get the real picture

Part No :

760308103148

Manufacturer
Würth Elektronik Midcom
Description
WE-WPCC WIRELESS POWER CHARGING
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
760308103148 PDF
Availability
6 pieces
Unit Price
$21.14000

Current price of 760308103148 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308103148 Specifications
Type Description
Series:WE-WPCC
Package:Bulk
Part Status:Active
Function:Receiver, Transmitter
Type:2 Coil, 1 Layer
Inductance:6.9µH, 6.4µH
Tolerance:±10%
DC Resistance (DCR):52mOhm Max
Q @ Freq:120 @ 125kHz, 115 @ 125kHz
Current Rating (Amps):8.5A
Current - Saturation (Isat):20A
Frequency - Self Resonant:15MHz, 19MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm)
