760308101312

760308101312

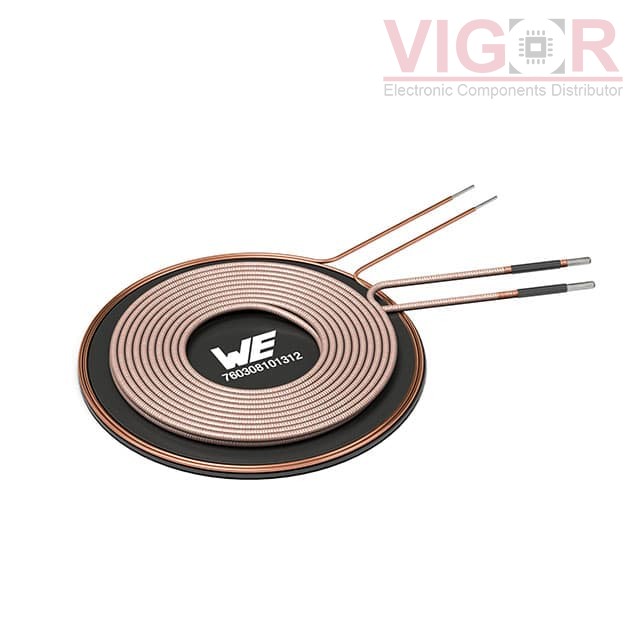

Image is for reference,
please contact us to get the real picture

Part No :

760308101312

Manufacturer
Würth Elektronik Midcom
Description
WE-WPCC WIRELESS POWER CHARGING
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
760308101312 PDF
Availability
31 pieces
Unit Price
$11.18000

Current price of 760308101312 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308101312 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Transmitter
Type:2 Coil, 1 Layer
Inductance:24µH, 700nH
Tolerance:±10%
DC Resistance (DCR):90mOhm, 30mOhm
Q @ Freq:125 @ 125kHz, 30 @ 125kHz
Current Rating (Amps):6A, 13A
Current - Saturation (Isat):-
Frequency - Self Resonant:7MHz, 63MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:2.13" Dia x 0.16" H (54.0mm x 4.0mm)
