760308103147

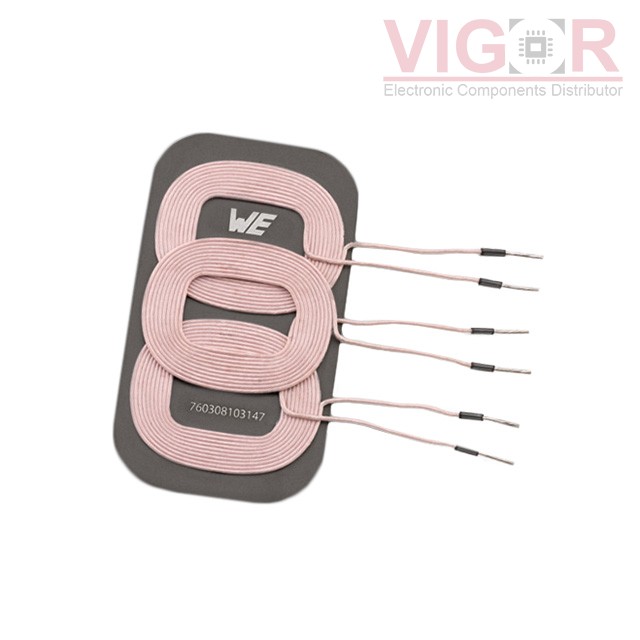

Image is for reference,
please contact us to get the real picture

Part No :: 760308103147

Manufacturer: Würth Elektronik Midcom

Description: WE-WPCC WIRELESS POWER CHARGING

Catalog: Wireless Charging Coils

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: 760308103147 PDF

Availability: 0 pieces

Unit Price: ~~$21.14000~~

Current price of 760308103147 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308103147 Specifications

Type	Description
Series:	WE-WPCC
Package:	Bulk
Part Status:	Active
Function:	Transmitter
Type:	3 Coil, 1 Layer
Inductance:	8.5µH, 7.5µH, 8.5µH
Tolerance:	±10%
DC Resistance (DCR):	56mOhm Max
Q @ Freq:	145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz
Current Rating (Amps):	9A, 10A, 9A
Current - Saturation (Isat):	18A
Frequency - Self Resonant:	11MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm)

Please confirm the specifications of the products when ordering.
