ADS5294IPFPT

ADS5294IPFPT

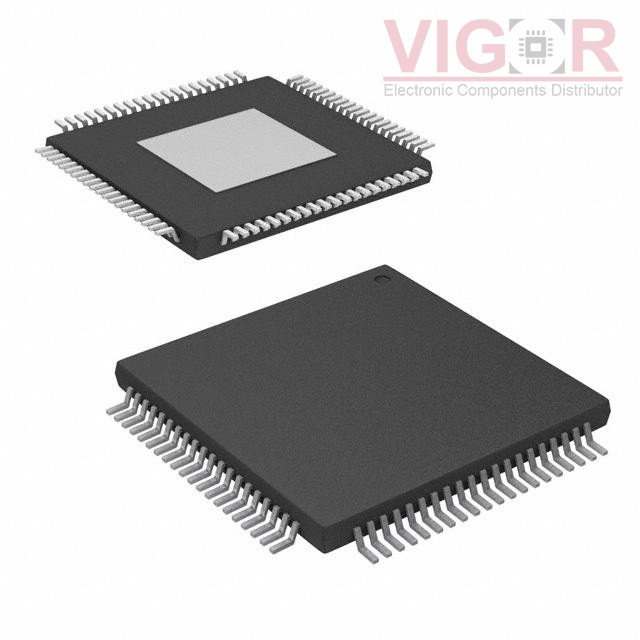

Image is for reference,
please contact us to get the real picture

Part No :

ADS5294IPFPT

Manufacturer
Texas Instruments
Description
IC ADC 14BIT PIPELINED 80HTQFP
Catalog
Data Acquisition - Analog to Digital Converters (ADC)
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
ADS5294IPFPT PDF
Availability
8011 pieces
Unit Price
$104.35000

Current price of ADS5294IPFPT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADS5294IPFPT Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Bits:14
Sampling Rate (Per Second):80M
Number of Inputs:8
Input Type:Differential
Data Interface:LVDS - Serial
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:8
Architecture:Pipelined
Reference Type:External, Internal
Voltage - Supply, Analog:1.7V ~ 1.9V
Voltage - Supply, Digital:1.7V ~ 1.9V
Features:Simultaneous Sampling
Operating Temperature:-40°C ~ 85°C
Package / Case:80-TQFP Exposed Pad
Supplier Device Package:80-HTQFP (12x12)
Mounting Type:Surface Mount
