ATF1504AS-7AX100

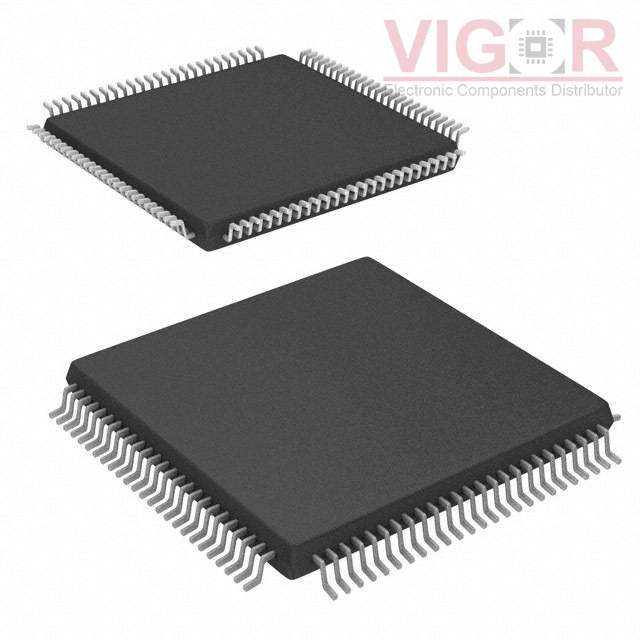

Image is for reference,
please contact us to get the real picture

Part No :: ATF1504AS-7AX100

Manufacturer: Roving Networks / Microchip Technology

Description: IC CPLD 64MC 7.5NS 100TQFP

Catalog: Embedded - CPLDs (Complex Programmable Logic Devices)

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: ATF1504AS-7AX100 PDF

Availability: 2370 pieces

Unit Price: ~~$6.63000~~

Current price of ATF1504AS-7AX100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATF1504AS-7AX100 Specifications

Type	Description
Series:	ATF15xx
Package:	Tray
Part Status:	Active
Programmable Type:	In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max:	7.5 ns
Voltage Supply - Internal:	4.75V ~ 5.25V
Number of Logic Elements/Blocks:	-
Number of Macrocells:	64
Number of Gates:	-
Number of I/O:	64
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	100-TQFP
Supplier Device Package:	100-TQFP (14x14)
