PIC16F1764-E/ST

PIC16F1764-E/ST

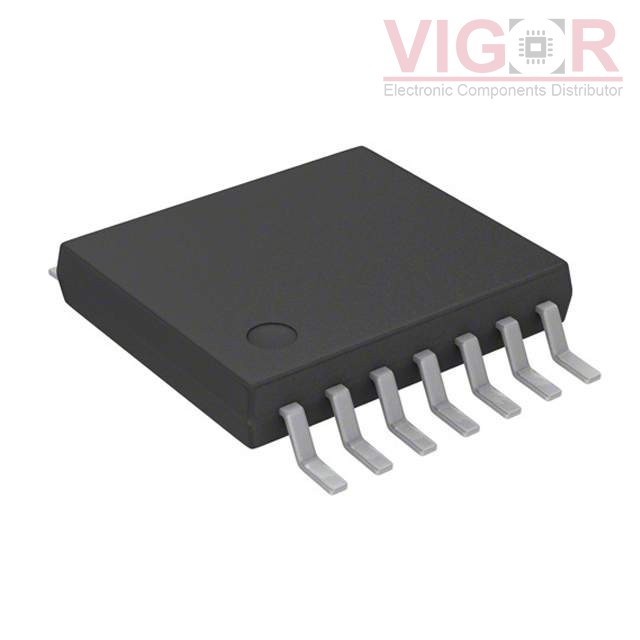

Image is for reference,
please contact us to get the real picture

Part No :

PIC16F1764-E/ST

Manufacturer
Roving Networks / Microchip Technology
Description
IC MCU 8BIT 7KB FLASH 14TSSOP
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
PIC16F1764-E/ST PDF
Availability
307 pieces
Unit Price
$1.36399

Current price of PIC16F1764-E/ST is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PIC16F1764-E/ST Specifications
Type Description
Series:PIC® XLP™ 16F
Package:Tube
Part Status:Active
Core Processor:PIC
Core Size:8-Bit
Speed:32MHz
Connectivity:I²C, LINbus, SPI, UART/USART
Peripherals:Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O:12
Program Memory Size:7KB (4K x 14)
Program Memory Type:FLASH
EEPROM Size:128 x 8
RAM Size:512 x 8
Voltage - Supply (Vcc/Vdd):2.3V ~ 5.5V
Data Converters:A/D 8x10b; D/A 1x5b, 1x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:14-TSSOP
