Z8F1680QN020SG

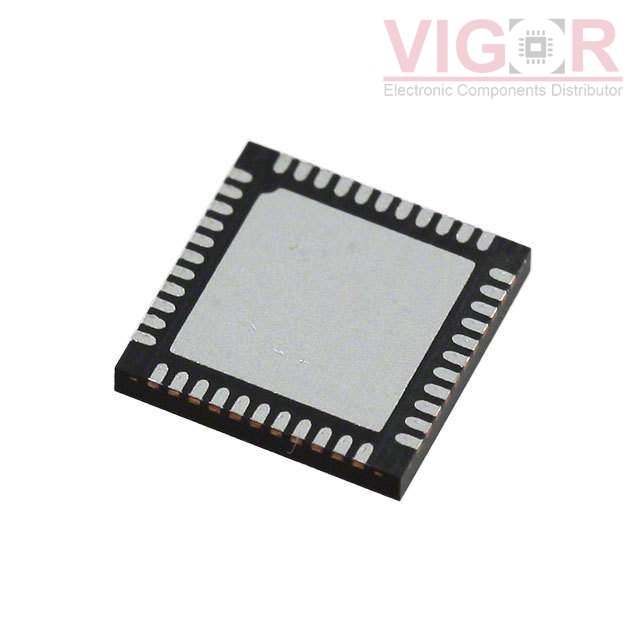

Image is for reference,
please contact us to get the real picture

Part No :: Z8F1680QN020SG

Manufacturer: Zilog / Littelfuse

Description: IC MCU 8BIT 16KB FLASH 44QFN

Catalog: Embedded - Microcontrollers

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: Z8F1680QN020SG PDF

Availability: 2664 pieces

Unit Price: ~~$3.01621~~

Current price of Z8F1680QN020SG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Z8F1680QN020SG Specifications

Type	Description
Series:	Encore!® XP®
Package:	Tube
Part Status:	Active
Core Processor:	eZ8
Core Size:	8-Bit
Speed:	20MHz
Connectivity:	I²C, IrDA, LINbus, SPI, UART/USART
Peripherals:	Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT
Number of I/O:	37
Program Memory Size:	16KB (16K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	3K x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 3.6V
Data Converters:	A/D 8x10b
Oscillator Type:	Internal
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	44-VFQFN Exposed Pad
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
