Z8F0813SJ005EG2156

Z8F0813SJ005EG2156

Image is for reference,
please contact us to get the real picture

Part No :

Z8F0813SJ005EG2156

Manufacturer
Zilog / Littelfuse
Description
IC MCU 8BIT 8KB FLASH 28SOIC
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
Z8F0813SJ005EG2156 PDF
Availability
8319 pieces
Unit Price
$3.32000

Current price of Z8F0813SJ005EG2156 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Z8F0813SJ005EG2156 Specifications
Type Description
Series:Encore!® XP®
Package:Tube
Part Status:Active
Core Processor:eZ8
Core Size:8-Bit
Speed:5MHz
Connectivity:IrDA, UART/USART
Peripherals:Brown-out Detect/Reset, LED, POR, PWM, WDT
Number of I/O:24
Program Memory Size:8KB (8K x 8)
Program Memory Type:FLASH
EEPROM Size:-
RAM Size:1K x 8
Voltage - Supply (Vcc/Vdd):2.7V ~ 3.6V
Data Converters:-
Oscillator Type:Internal
Operating Temperature:-40°C ~ 105°C (TA)
Mounting Type:Surface Mount
Package / Case:28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MB89635PF-GT-1187-BND

MB89635PF-GT-1187-BND

IC MCU 8BIT 16KB MROM 64QFP

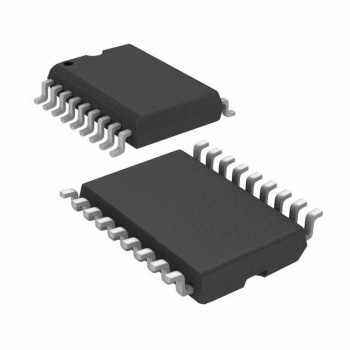

HOT PIC16C554T-04I/SO

PIC16C554T-04I/SO

IC MCU 8BIT 896B OTP 18SOIC

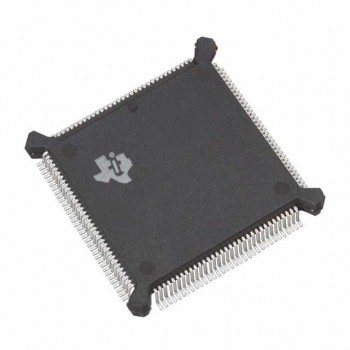

HOT TMS32F240PQAG4
