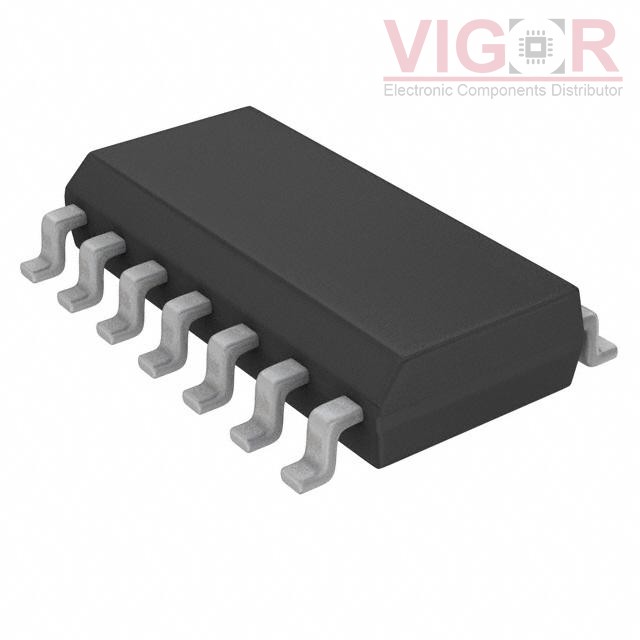

PIC16F1503-E/SL

Image is for reference,
please contact us to get the real picture

Part No :

PIC16F1503-E/SL

Manufacturer
Roving Networks / Microchip Technology
Description
IC MCU 8BIT 3.5KB FLASH 14SOIC
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
PIC16F1503-E/SL PDF
Availability
363 pieces
Unit Price
$0.96000

Current price of PIC16F1503-E/SL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:PIC® 16F, Functional Safety (FuSa)
Package:Tube
Part Status:Active
Core Processor:PIC
Core Size:8-Bit
Speed:20MHz
Connectivity:I²C, SPI
Peripherals:Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O:11
Program Memory Size:3.5KB (2K x 14)
Program Memory Type:FLASH
EEPROM Size:-
RAM Size:128 x 8
Voltage - Supply (Vcc/Vdd):2.3V ~ 5.5V
Data Converters:A/D 8x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:14-SOIC (0.154", 3.90mm Width)
Supplier Device Package:14-SOIC
