Z86E1505PSG

Z86E1505PSG

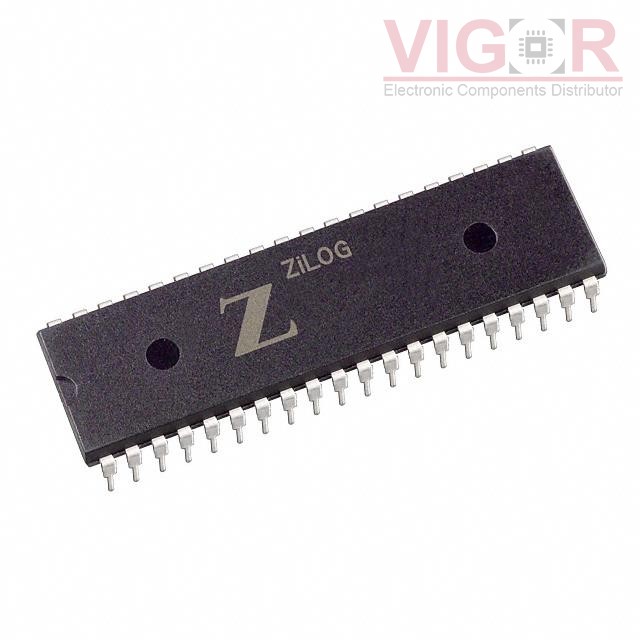

Image is for reference,
please contact us to get the real picture

Part No :

Z86E1505PSG

Manufacturer
Zilog / Littelfuse
Description
IC MCU 8BIT 4KB OTP 40DIP
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
Z86E1505PSG PDF
Availability
1512 pieces
Unit Price
$7.92192

Current price of Z86E1505PSG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Z86E1505PSG Specifications
Type Description
Series:Z8®
Package:Tube
Part Status:Active
Core Processor:Z8
Core Size:8-Bit
Speed:5MHz
Connectivity:-
Peripherals:LED, POR, WDT
Number of I/O:32
Program Memory Size:4KB (4K x 8)
Program Memory Type:OTP
EEPROM Size:-
RAM Size:188 x 8
Voltage - Supply (Vcc/Vdd):4.5V ~ 5.5V
Data Converters:-
Oscillator Type:External
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Package / Case:40-DIP (0.620", 15.75mm)
Supplier Device Package:-
