Z8F0823PH005EG2156

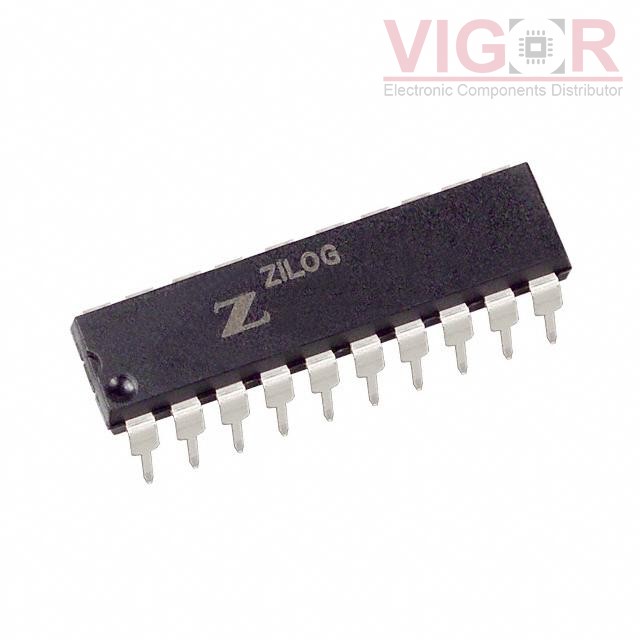

Image is for reference,
please contact us to get the real picture

Part No :: Z8F0823PH005EG2156

Manufacturer: Zilog / Littelfuse

Description: IC MCU 8BIT 8KB FLASH 20DIP

Catalog: Embedded - Microcontrollers

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: Z8F0823PH005EG2156 PDF

Availability: 1127 pieces

Unit Price: ~~$2.51044~~

Current price of Z8F0823PH005EG2156 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Z8F0823PH005EG2156 Specifications

Type	Description
Series:	Encore!® XP®
Package:	Tube
Part Status:	Active
Core Processor:	eZ8
Core Size:	8-Bit
Speed:	5MHz
Connectivity:	IrDA, UART/USART
Peripherals:	Brown-out Detect/Reset, LED, POR, PWM, WDT
Number of I/O:	16
Program Memory Size:	8KB (8K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	1K x 8
Voltage - Supply (Vcc/Vdd):	2.7V ~ 3.6V
Data Converters:	A/D 7x10b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 105°C (TA)
Mounting Type:	Through Hole
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP

Please confirm the specifications of the products when ordering.
