MN101CF77GXN

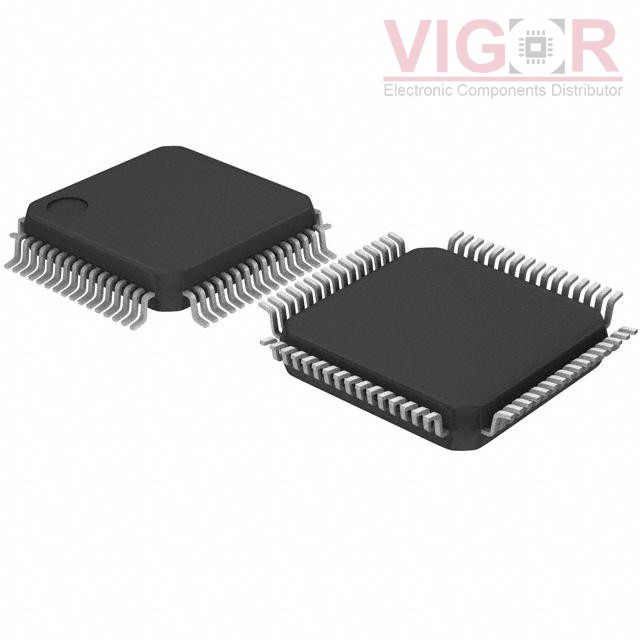

Image is for reference,
please contact us to get the real picture

Part No :: MN101CF77GXN

Manufacturer: Panasonic

Description: IC MCU 8BIT 128KB FLASH 64LQFP

Catalog: Embedded - Microcontrollers

Shipped from: HK warehouse

Expected Shipping Date: Aug 19 - Aug 23 2025

DataSheet: MN101CF77GXN PDF

Availability: 409 pieces

Unit Price: ~~$14.17000~~

Current price of MN101CF77GXN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MN101CF77GXN Specifications

Type	Description
Series:	AM1
Package:	Tray
Part Status:	Obsolete
Core Processor:	MN101C
Core Size:	8-Bit
Speed:	20MHz
Connectivity:	I²C, UART/USART
Peripherals:	DMA, PWM, WDT
Number of I/O:	53
Program Memory Size:	128KB (128K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	6K x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 3.6V
Data Converters:	A/D 7x10b; D/A 2x8b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	64-LQFP
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
