PIC16F689-E/SO

PIC16F689-E/SO

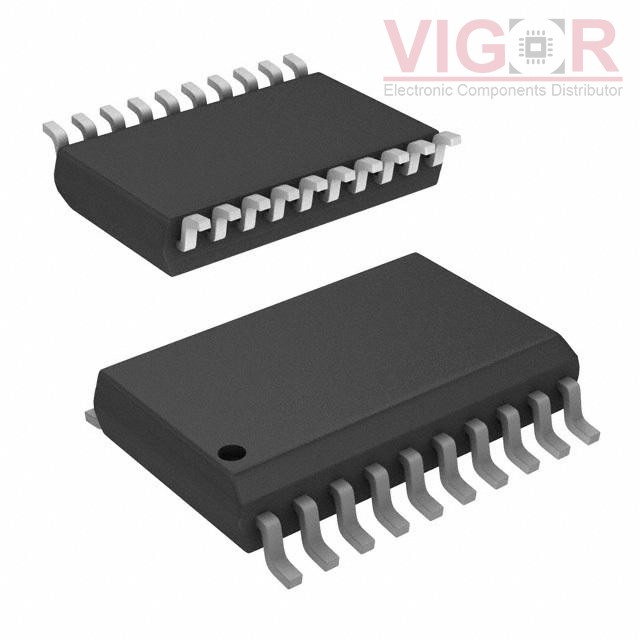

Image is for reference,
please contact us to get the real picture

Part No :

PIC16F689-E/SO

Manufacturer
Roving Networks / Microchip Technology
Description
IC MCU 8BIT 7KB FLASH 20SOIC
Catalog
Embedded - Microcontrollers
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
PIC16F689-E/SO PDF
Availability
244 pieces
Unit Price
$2.42201

Current price of PIC16F689-E/SO is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PIC16F689-E/SO Specifications
Type Description
Series:PIC® 16F
Package:Tube
Part Status:Active
Core Processor:PIC
Core Size:8-Bit
Speed:20MHz
Connectivity:I²C, SPI, UART/USART
Peripherals:Brown-out Detect/Reset, POR, WDT
Number of I/O:18
Program Memory Size:7KB (4K x 14)
Program Memory Type:FLASH
EEPROM Size:256 x 8
RAM Size:256 x 8
Voltage - Supply (Vcc/Vdd):2V ~ 5.5V
Data Converters:A/D 12x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:20-SOIC (0.295", 7.50mm Width)
Supplier Device Package:20-SOIC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
