DG401DYZ

DG401DYZ

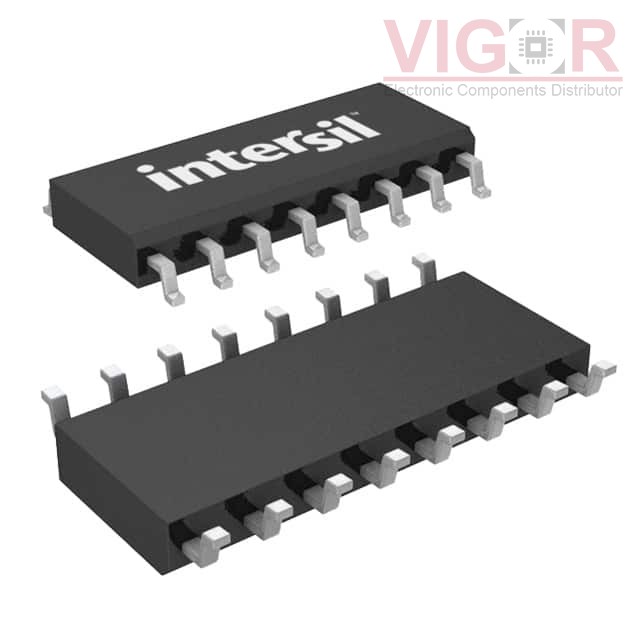

Image is for reference,
please contact us to get the real picture

Part No :

DG401DYZ

Manufacturer
Intersil (Renesas Electronics America)
Description
IC SWITCH DUAL SPST 16SOIC
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DG401DYZ PDF
Availability
204 pieces
Unit Price
$2.63000

Current price of DG401DYZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG401DYZ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPST - NO
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:2
On-State Resistance (Max):45Ohm
Channel-to-Channel Matching (ΔRon):3Ohm
Voltage - Supply, Single (V+):5V ~ 34V
Voltage - Supply, Dual (V±):±5V ~ 17V
Switch Time (Ton, Toff) (Max):150ns, 100ns
-3db Bandwidth:-
Charge Injection:60pC
Channel Capacitance (CS(off), CD(off)):12pF, 12pF
Current - Leakage (IS(off)) (Max):500pA
Crosstalk:-90dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SOIC
