ADG333ABNZ

ADG333ABNZ

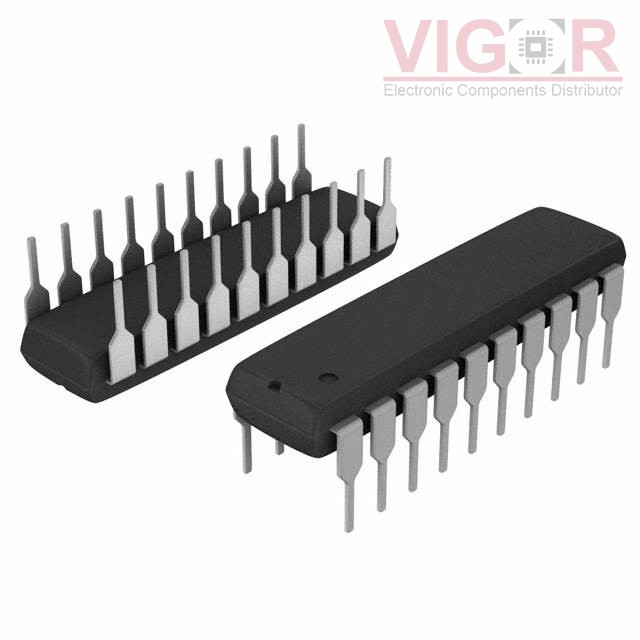

Image is for reference,
please contact us to get the real picture

Part No :

ADG333ABNZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC SWITCH QUAD SPDT 20DIP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
ADG333ABNZ PDF
Availability
269 pieces
Unit Price
$8.10000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of ADG333ABNZ is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

ADG333ABNZ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:4
On-State Resistance (Max):45Ohm
Channel-to-Channel Matching (ΔRon):5Ohm
Voltage - Supply, Single (V+):3V ~ 30V
Voltage - Supply, Dual (V±):±3V ~ 20V
Switch Time (Ton, Toff) (Max):90ns, 80ns (Typ)
-3db Bandwidth:-
Charge Injection:2pC
Channel Capacitance (CS(off), CD(off)):7pF
Current - Leakage (IS(off)) (Max):250pA
Crosstalk:-85dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Through Hole
Package / Case:20-DIP (0.300", 7.62mm)
Supplier Device Package:20-PDIP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
