ADG506ABQ

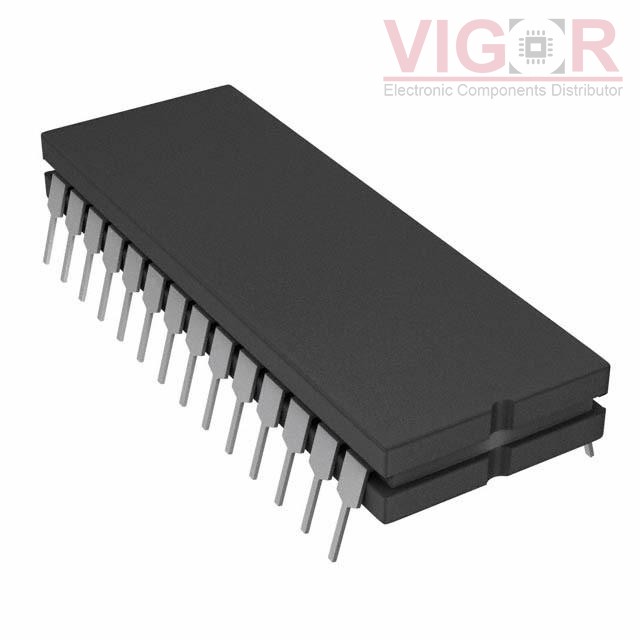

Image is for reference,
please contact us to get the real picture

Part No :: ADG506ABQ

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC MULTIPLEXER 16X1 28CDIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: ADG506ABQ PDF

Availability: 1869 pieces

Unit Price: ~~$40.40000~~

Current price of ADG506ABQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG506ABQ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	16:1
Number of Circuits:	1
On-State Resistance (Max):	300Ohm
Channel-to-Channel Matching (ΔRon):	15Ohm
Voltage - Supply, Single (V+):	10.8V ~ 16.5V
Voltage - Supply, Dual (V±):	±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max):	300ns, 300ns
-3db Bandwidth:	-
Charge Injection:	4pC
Channel Capacitance (CS(off), CD(off)):	5pF, 44pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	28-CDIP (0.600", 15.24mm)
Supplier Device Package:	28-CDIP

Please confirm the specifications of the products when ordering.
