TMUX6113RTER

TMUX6113RTER

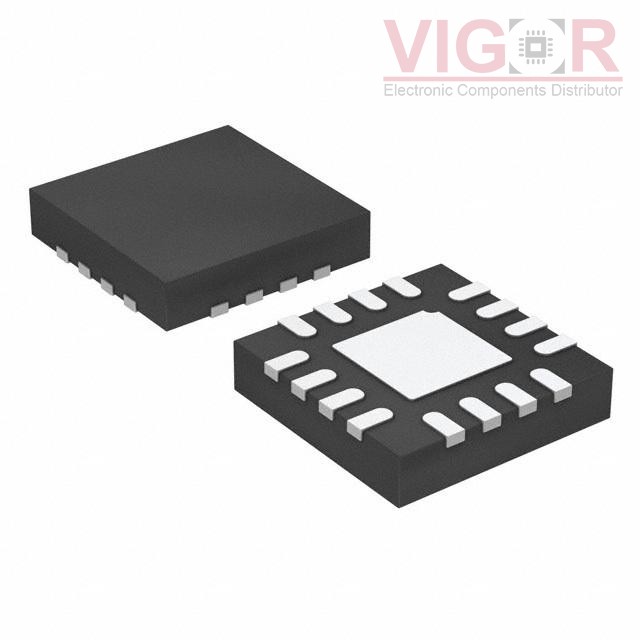

Image is for reference,
please contact us to get the real picture

Part No :

TMUX6113RTER

Manufacturer
Texas Instruments
Description
IC SWITCH SPST QUAD 16WQFN
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
TMUX6113RTER PDF
Availability
4042 pieces
Unit Price
$3.68000

Current price of TMUX6113RTER is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TMUX6113RTER Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SPST
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):160Ohm
Channel-to-Channel Matching (ΔRon):2.5Ohm
Voltage - Supply, Single (V+):10V ~ 16.5V
Voltage - Supply, Dual (V±):±5V ~ 16.5V
Switch Time (Ton, Toff) (Max):78ns, 68ns
-3db Bandwidth:800MHz
Charge Injection:0.6pC
Channel Capacitance (CS(off), CD(off)):2.5pF, 2.4pF
Current - Leakage (IS(off)) (Max):20pA
Crosstalk:-100dB ~ -115dB @ 1MHz
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:16-WFQFN Exposed Pad
Supplier Device Package:16-WQFN (3x3)
