ADG1634BRUZ

ADG1634BRUZ

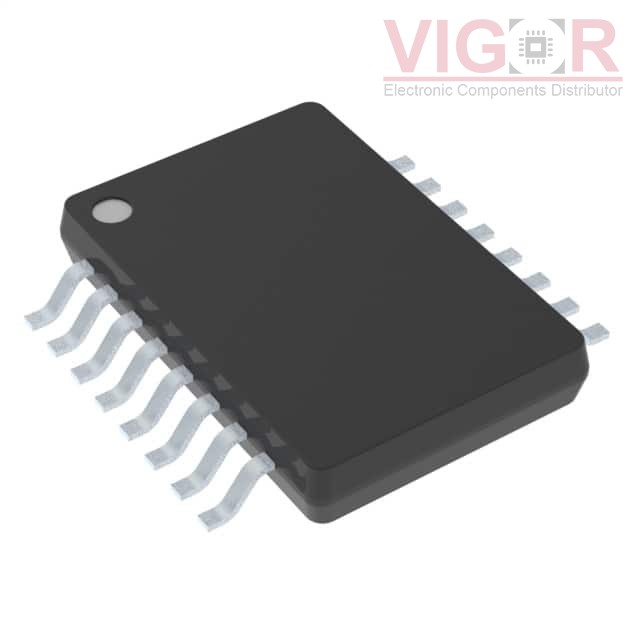

Image is for reference,
please contact us to get the real picture

Part No :

ADG1634BRUZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC SW SPDT 4.5OHM RON 20TSSOP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
ADG1634BRUZ PDF
Availability
1391 pieces
Unit Price
$11.35000

Current price of ADG1634BRUZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG1634BRUZ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:4
On-State Resistance (Max):4.5Ohm
Channel-to-Channel Matching (ΔRon):120mOhm
Voltage - Supply, Single (V+):3.3V ~ 16V
Voltage - Supply, Dual (V±):±3.3V ~ 8V
Switch Time (Ton, Toff) (Max):38ns, 152ns
-3db Bandwidth:109MHz
Charge Injection:-12.4pC
Channel Capacitance (CS(off), CD(off)):19pF, 32pF
Current - Leakage (IS(off)) (Max):100pA
Crosstalk:-64dB @ 1MHz
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:20-TSSOP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
