ADG5248FBCPZ-RL7

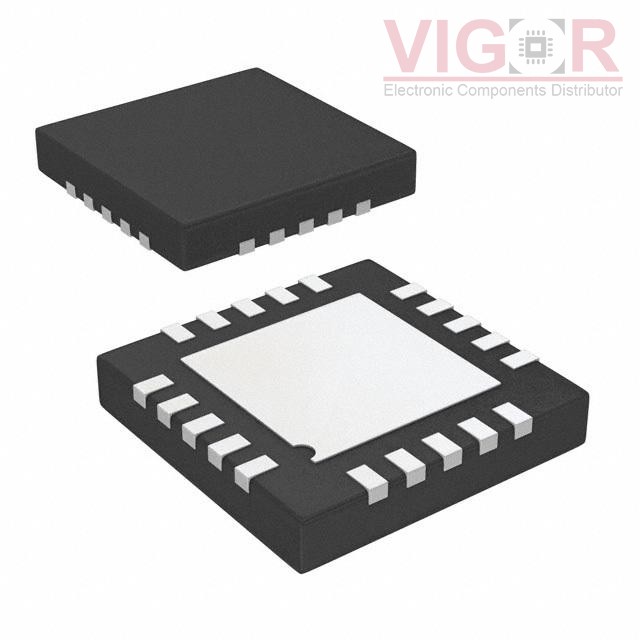

Image is for reference,
please contact us to get the real picture

Part No :: ADG5248FBCPZ-RL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC MULTIPLEXER 8X1 20TSSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: ADG5248FBCPZ-RL7 PDF

Availability: 6553 pieces

Unit Price: ~~$6.82500~~

Current price of ADG5248FBCPZ-RL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG5248FBCPZ-RL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	8:1
Number of Circuits:	1
On-State Resistance (Max):	335Ohm
Channel-to-Channel Matching (ΔRon):	3Ohm
Voltage - Supply, Single (V+):	8V ~ 44V
Voltage - Supply, Dual (V±):	±5V ~ 22V
Switch Time (Ton, Toff) (Max):	245ns, 135ns
-3db Bandwidth:	200MHz
Charge Injection:	-1.2pC
Channel Capacitance (CS(off), CD(off)):	4pF, 13pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-75dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad, CSP
Supplier Device Package:	20-LFCSP-WQ (4x4)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
