DG509ADY+

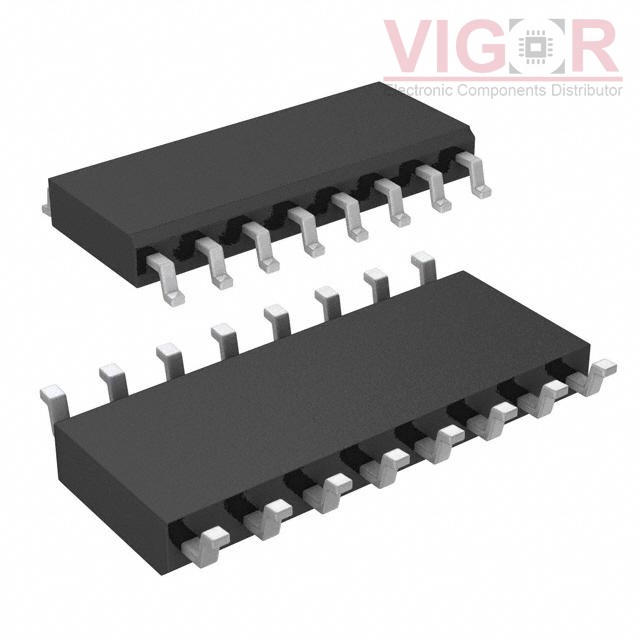

Image is for reference,
please contact us to get the real picture

Part No :: DG509ADY+

Manufacturer: Maxim Integrated

Description: IC MULTIPLEXER DUAL 4X1 16SOIC

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Aug 07 - Aug 11 2025

DataSheet: DG509ADY+ PDF

Availability: 400 pieces

Unit Price: ~~$8.18000~~

Current price of DG509ADY+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG509ADY+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	450Ohm
Channel-to-Channel Matching (ΔRon):	27Ohm
Voltage - Supply, Single (V+):	-
Voltage - Supply, Dual (V±):	±4.5V ~ 18V
Switch Time (Ton, Toff) (Max):	1.5µs, 1µs
-3db Bandwidth:	-
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	5pF, 12pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SO
