ADG5409BCPZ-REEL7

ADG5409BCPZ-REEL7

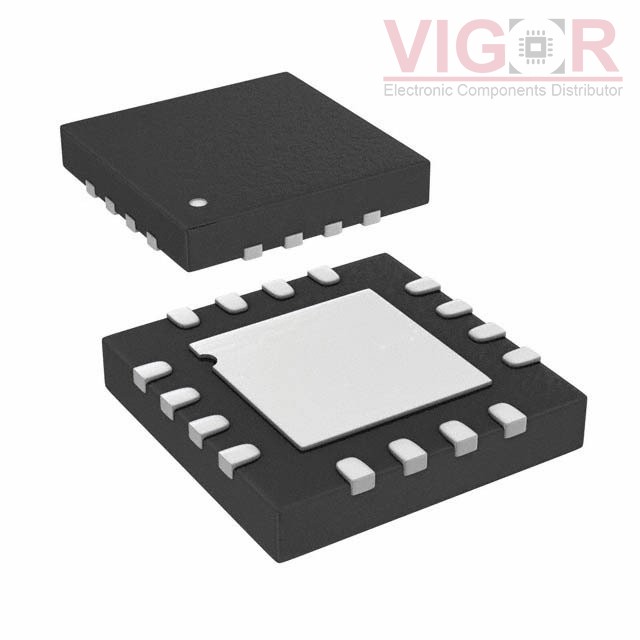

Image is for reference,
please contact us to get the real picture

Part No :

ADG5409BCPZ-REEL7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC MULTIPLEXER 2 X 4:1 16LFCSP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
ADG5409BCPZ-REEL7 PDF
Availability
563 pieces
Unit Price
$6.77000

Current price of ADG5409BCPZ-REEL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG5409BCPZ-REEL7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SP4T
Multiplexer/Demultiplexer Circuit:4:1
Number of Circuits:2
On-State Resistance (Max):14Ohm
Channel-to-Channel Matching (ΔRon):300mOhm
Voltage - Supply, Single (V+):9V ~ 40V
Voltage - Supply, Dual (V±):±9V ~ 22V
Switch Time (Ton, Toff) (Max):165ns, 153ns
-3db Bandwidth:88MHz
Charge Injection:155pC
Channel Capacitance (CS(off), CD(off)):17pF, 48pF
Current - Leakage (IS(off)) (Max):250pA
Crosstalk:-60dB @ 1MHz
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:16-WQFN Exposed Pad, CSP
Supplier Device Package:16-LFCSP-WQ (4x4)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

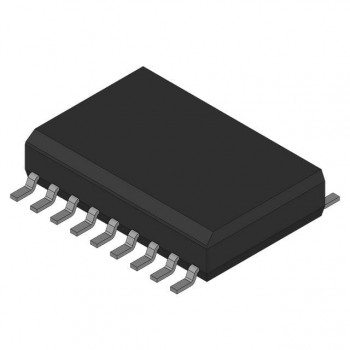

HOT ADG529AKRWZ-REEL7

ADG529AKRWZ-REEL7

DIFFERENTIAL MUX,4 CHANNEL

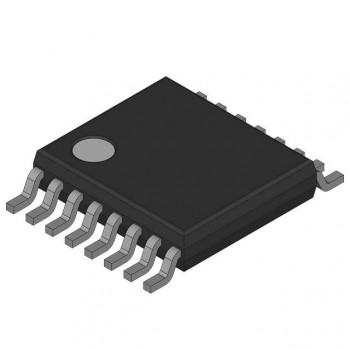

HOT MC74HC4053DT
