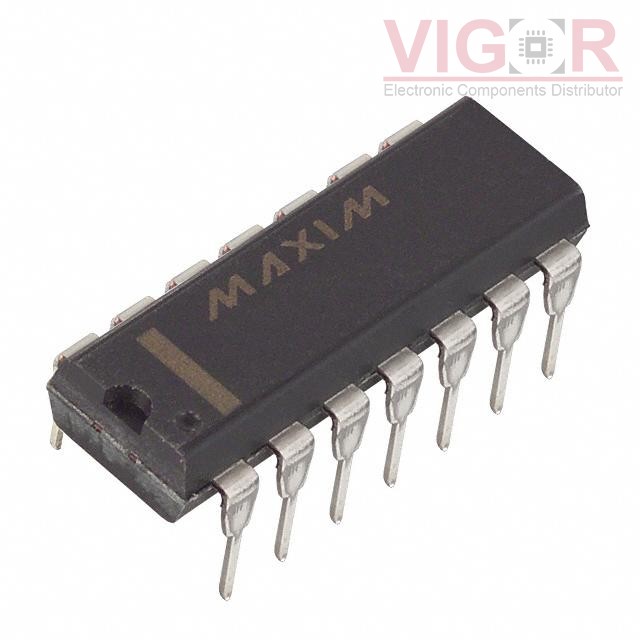

DG200ACJ+

DG200ACJ+

Image is for reference,
please contact us to get the real picture

Part No :

DG200ACJ+

Manufacturer
Maxim Integrated
Description
IC SWITCH DUAL SPST 14DIP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
DG200ACJ+ PDF
Availability
212 pieces
Unit Price
$4.33000

Current price of DG200ACJ+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG200ACJ+ Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPST - NC
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:2
On-State Resistance (Max):80Ohm
Channel-to-Channel Matching (ΔRon):-
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):±4.5V ~ 18V
Switch Time (Ton, Toff) (Max):1µs, 500ns
-3db Bandwidth:-
Charge Injection:10pC
Channel Capacitance (CS(off), CD(off)):9pF, 9pF
Current - Leakage (IS(off)) (Max):2nA
Crosstalk:-90dB @ 1MHz
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Package / Case:14-DIP (0.300", 7.62mm)
Supplier Device Package:14-PDIP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

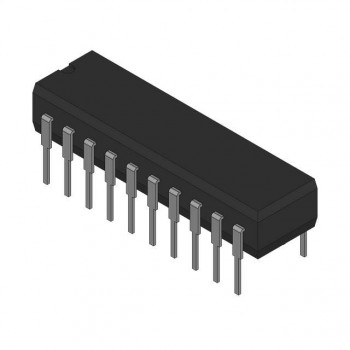

HOT MAX394CPP

MAX394CPP

QUAD, SPST ANALOG SWITCH
HOT MAX4593CPE

MAX4593CPE

QUAD, SPST ANALOG SWITCH

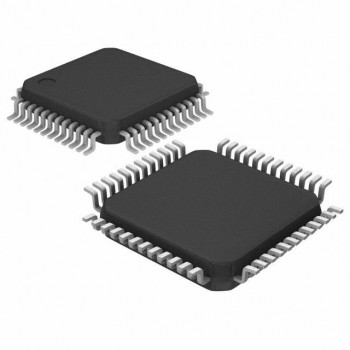

HOT MAX14802CCM+
